Enclosures with sockets for 8 PIN (Octal) or 11 PIN (Undecal) connections for electronic products.

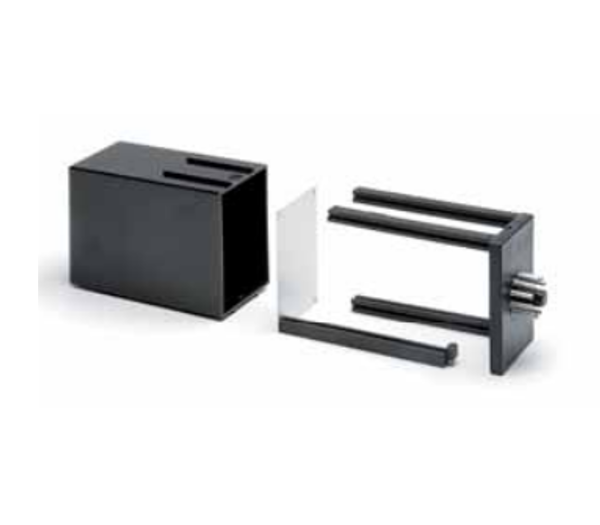

Enclosure which can be easily mounted without the use of screws for the assembly of the items. The front panel can be easily inserted with a snap lock mechanism or it can be molded into the enclosure. The pcb is inserted in the enclosure from the socket side.

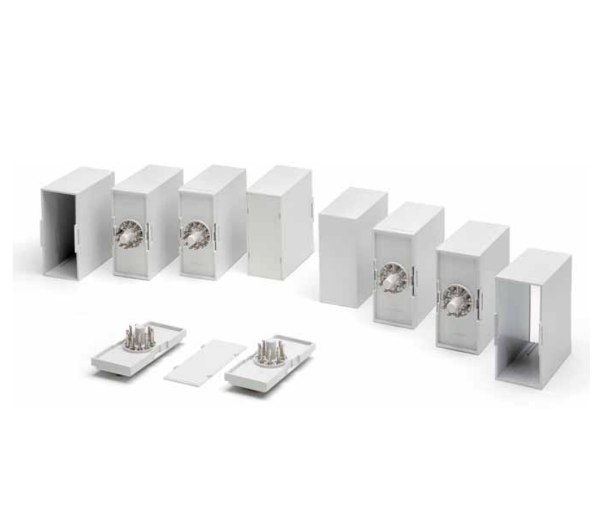

Model Types
CZ8SP Complete Enclosure with 8 pin socket
CZ11SP Complete Enclosure with 11 pin socket
CZ8CP Complete Enclosure with 8 pin socket with removable panel
CZ11CP Complete Enclosure with 11 pin socket with removable panel

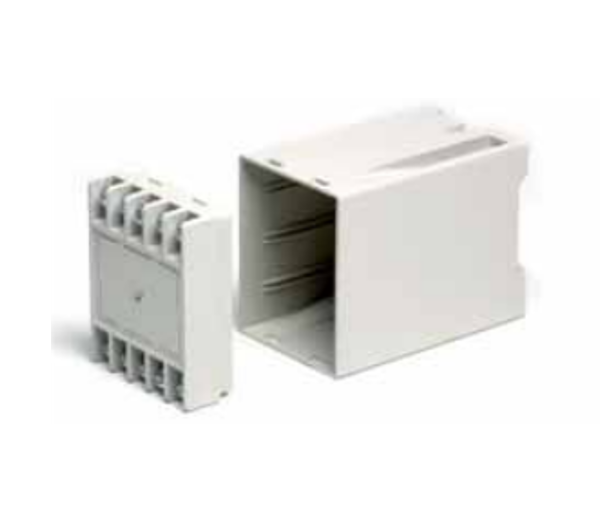

IT 010 Enclosure prearranged for DIN rail fastening
CA8 Complete Enclosure with 8 pin socket for electronic equipment, L=100
CA11 Complete Enclosure with 11 pin socket for electronic equipment, L=100
CB8 Complete Enclosure with 8 pin socket for electronic equipment, L=70
CB11 Complete Enclosure with 11 pin socket for electronic equipment, L=70

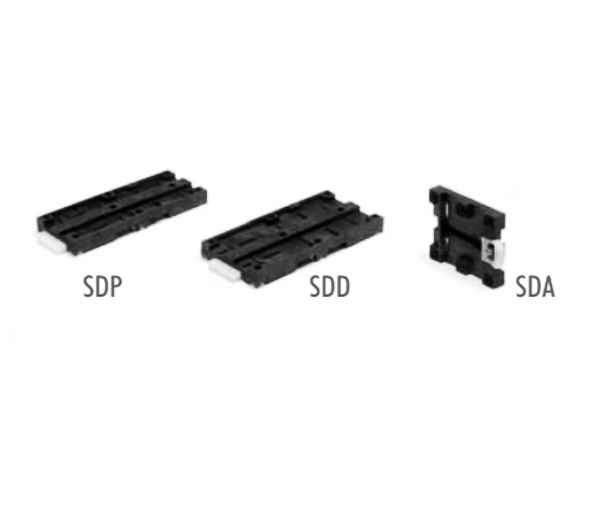

SDP SDP Fastening Base
SDD SDD Fastening Base
SDA SDA Fastening Base
Features
Material: Self-extinguishing PPO
Color: Grey (RAL 7035)
Working Temperature: -30 + 80¡C
Rating: 10A 250V
Insulation Resistance: 1000 MOMH
Dielectric Strength: 2.5 KV SURFACE ISOLATION DISTANCE ACCORDING TO IEC 144
Dimensions (mm): 390 x 290 x 180
Model Numbers
04.3060000 - Kit Enclosure Guide Octal CZ8SP With Socket
04.308000 - Kit Enclosure with Socket Octal CZ8CP With Removable Panel
