DIN Rail Enclosure Railbox

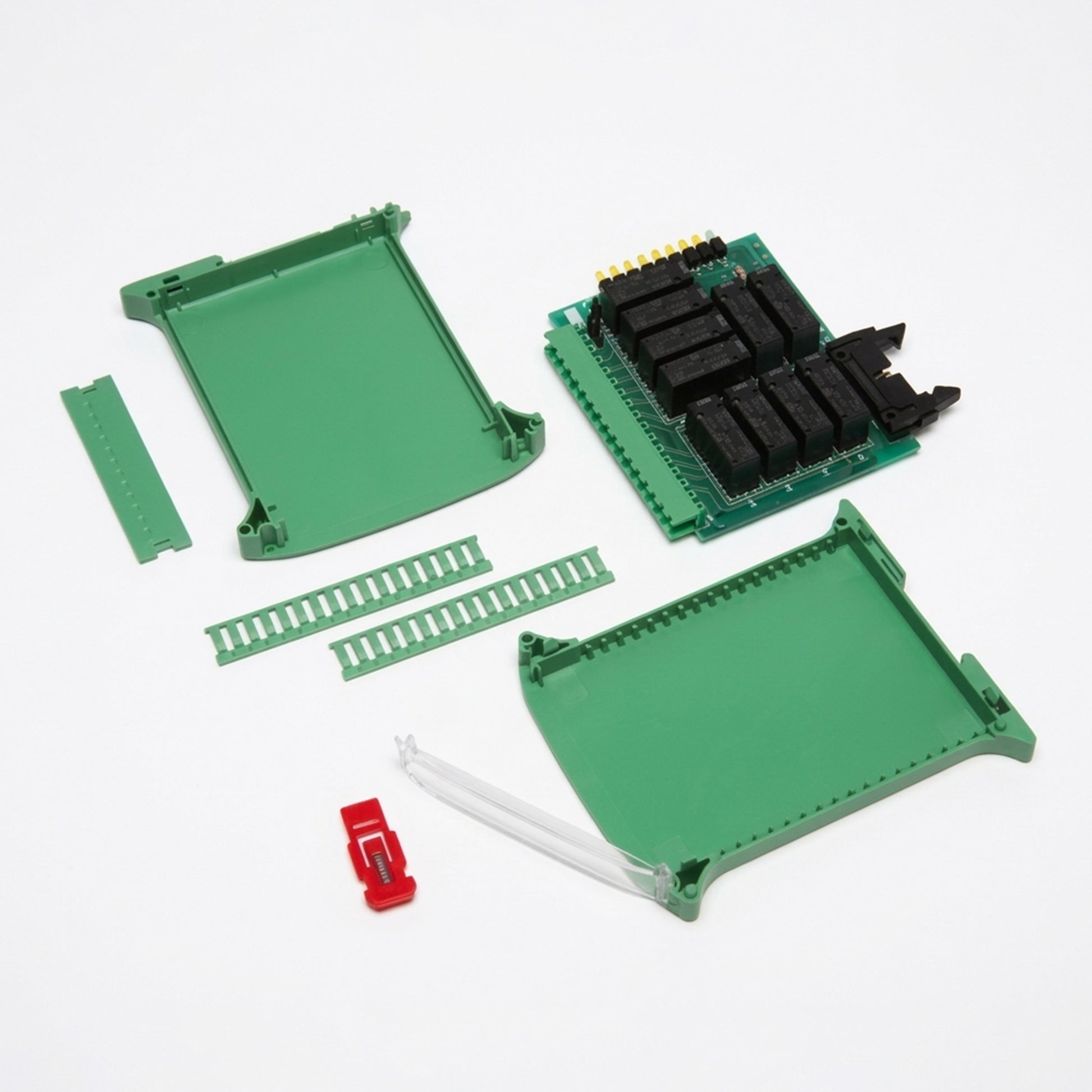

The Railbox is a modular designed, European styled enclosures that offers a small panel footprint to minimize the panel space occupied with a broad range of options to meet your electronic instrument or control needs. A spring DIN rail clip, modular front panel, clear flip cover and breakable side covers make it easy to design your PLC, ethernet, bus or relay interface to fit with many LED, 5.08 mm terminal block or connector options. Your entire family of products can be designed with the different size options with a unique look in the market. Colors include Black, Gray or Green.

Model Size

• 17.5mm      DIN Rail Mounted, 17.5mm Kit with case spring clip and hinged clear cover
• 22.5mm      DIN Rail Mounted 22.5mm Kit with case spring clip and hinged clear cover
• 35mm        DIN Rail Mounted, 35mm Kit with case spring clip and hinged clear cover
• 45mm        DIN Rail Mounted, 45mm Kit with case spring clip and hinged clear cover


Model Styles

• Vertical -           Vertically Mounted on your DIN Rail device
• Multilevel -       Elongated body (See Multilevel)
• BUS System -   Connect multiple units via BUS Style Connections (See Bus System)
• Compact  -       Compact Series of Enclosures (See Compact)

Features

• Dimensions: Height - 120mm, Depth - 101mm, Width - (17.5mm, 22.5mm, 35mm or 45mm)

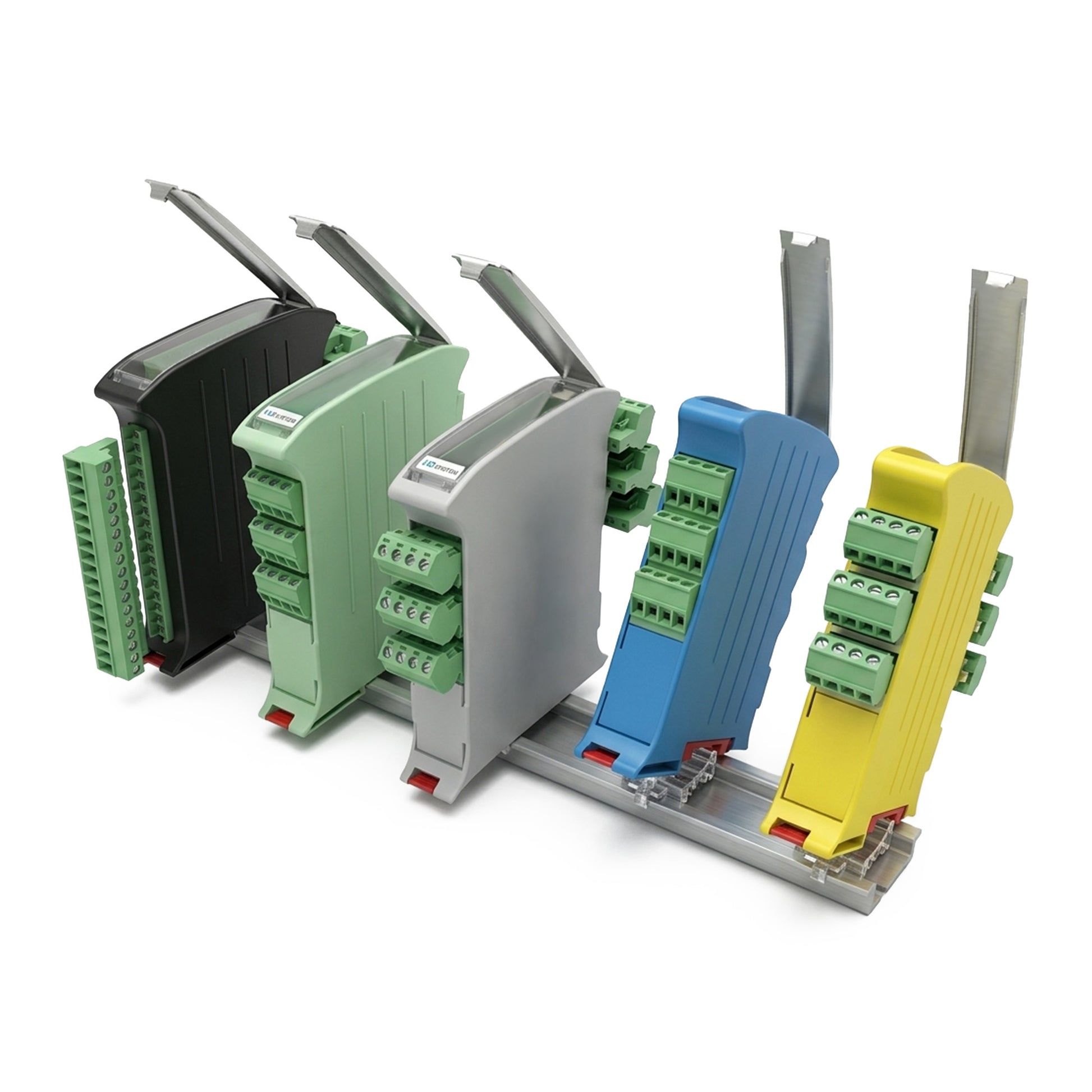

• Color: Black, Grey and Green
• Blend PC/ABS extinguishing
• Vertical DIN Rail Mounting for  a clean, space saving look
• Various widths range from 17.5mm to 45mm

Accessories & Options

• Front panel

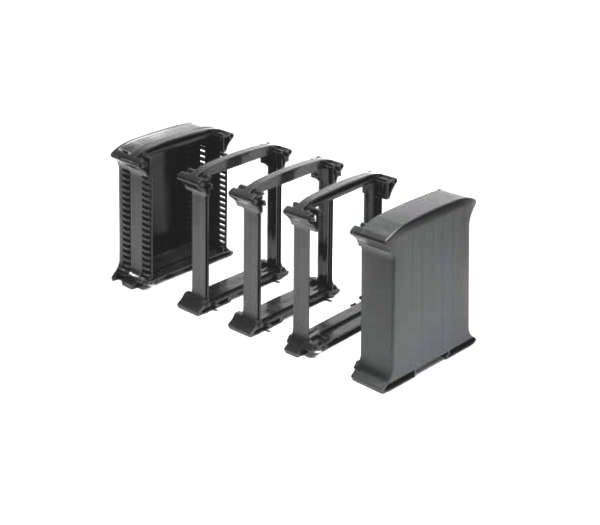

• Breakable side covers (vents)
• Solid side covers
• Red hinged front cover
• PC board _shortening support
• Fixed & pluggable terminal blocks
• Special colors available on request
• (See Railbox Accessory Page)
