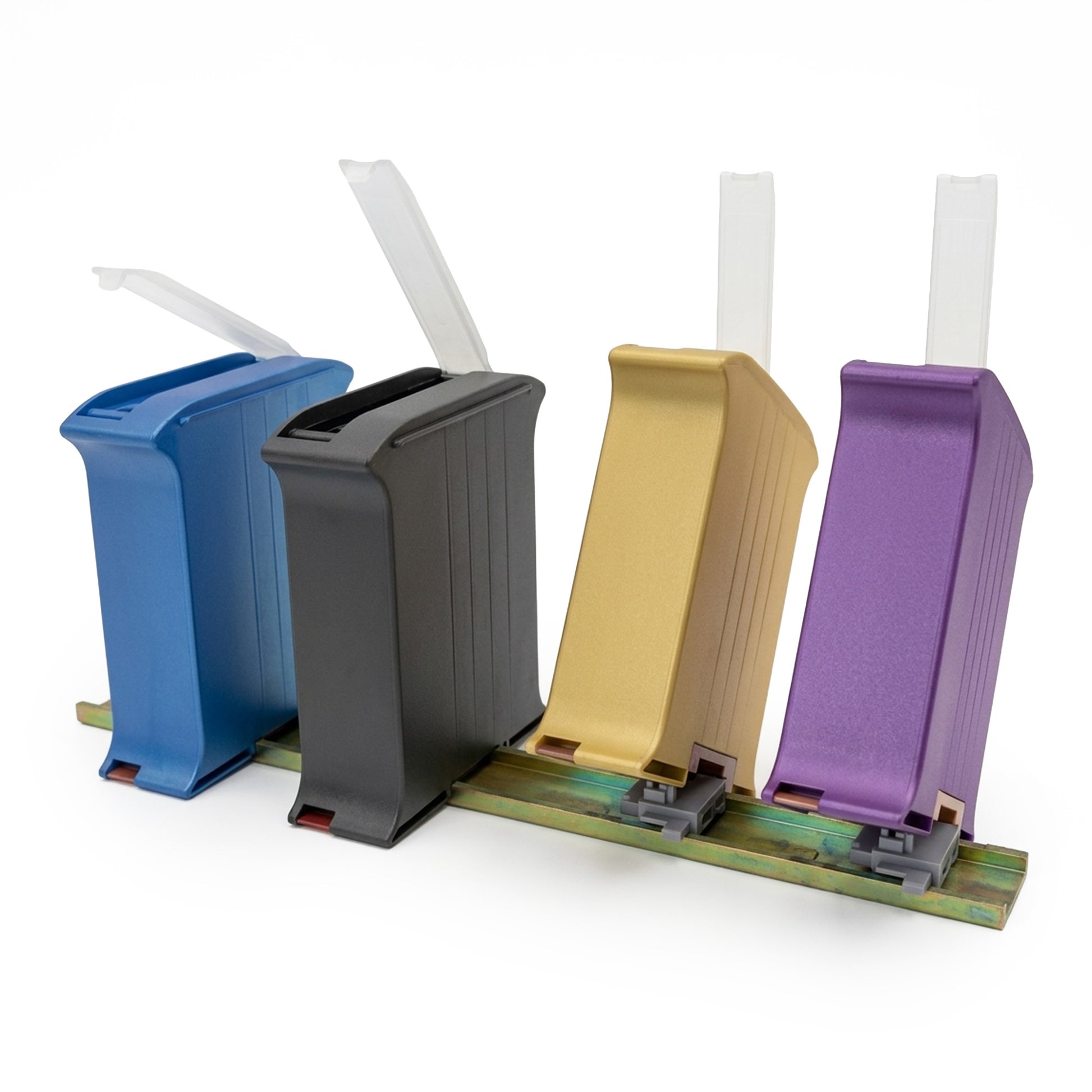

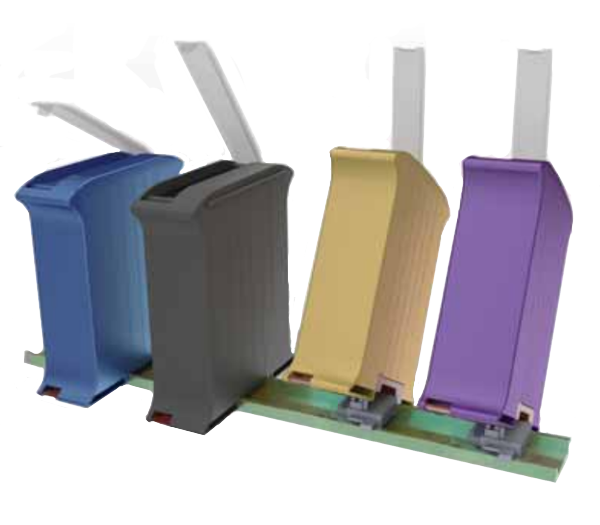

DIN Rail Enclosure Railbox Blind

The Railbox is a modular designed, European styled enclosures that offers a small panel footprint to minimize the panel space occupied with a broad range of options to meet your electronic instrument or control needs. A spring DIN rail clip, modular front panel, clear flip cover and breakable side covers make it easy to design your PLC, ethernet, bus or relay interface to fit with many LED, 5.08 mm terminal block or connector options. Your entire family of products can be designed with the different size options with a unique look in the market. Colors include Black, Gray or Green.

Model Sizes

• 17.5mm    DIN Rail Mounted, 17.5mm Kit with case spring clip and hinged clear cover

• 22.5mm    DIN Rail Mounted 22.5mm Kit with case spring clip and hinged clear cover

• 35mm       DIN Rail Mounted, 35mm Kit with case spring clip and hinged clear cover

• 45mm       DIN Rail Mounted, 45mm Kit with case spring clip and hinged clear cover


Features

• Dimensions: Height:120mm, Depth:101mm and Width: (17.5mm, 22.5mm, 35mm, 45mm)
• Color: Black, Grey and Green
• Blend PC/ABS self-extinguishing
• Vertical DIN Rail Mounting for  a clean, space saving look
• Various widths range from 17.5mm to 45mm

Accessories & Options

• Front panel
• Breakable side covers (Vents)
• Solid side covers
• Red hinged front cover
• PC board shortening support
• Fixed & pluggable terminal blocks
• (See Railbox Accessory Page)
