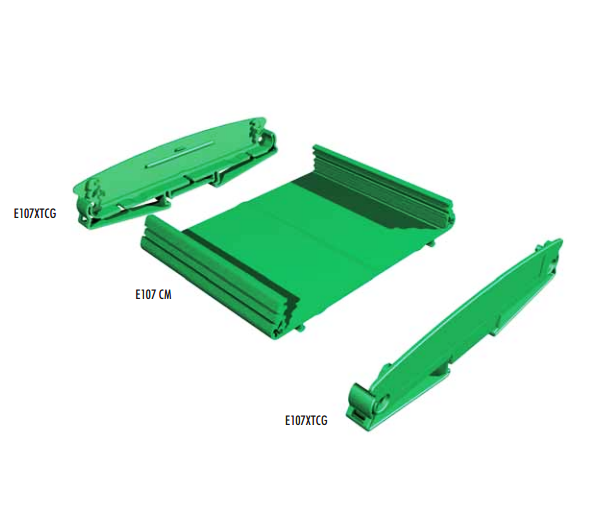

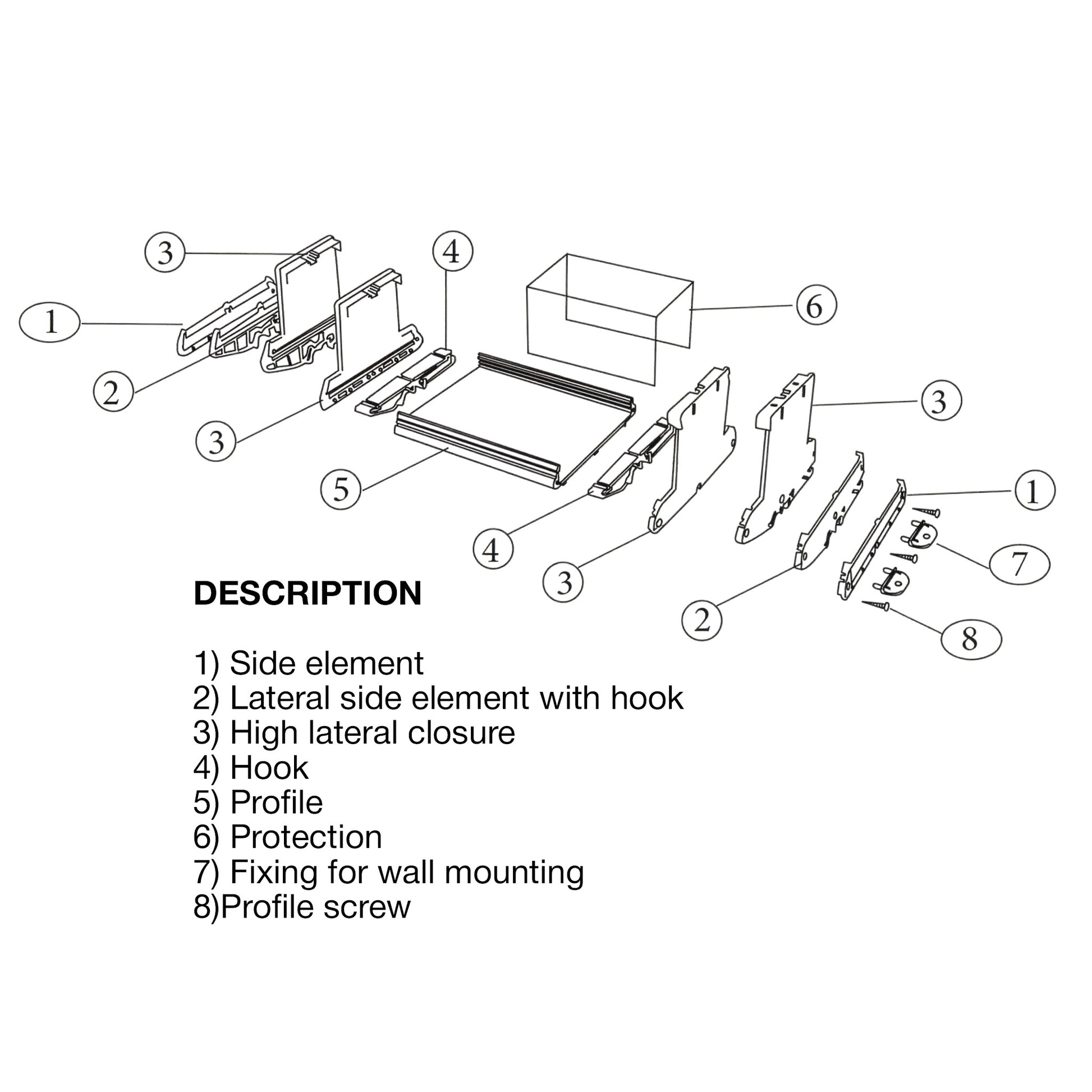

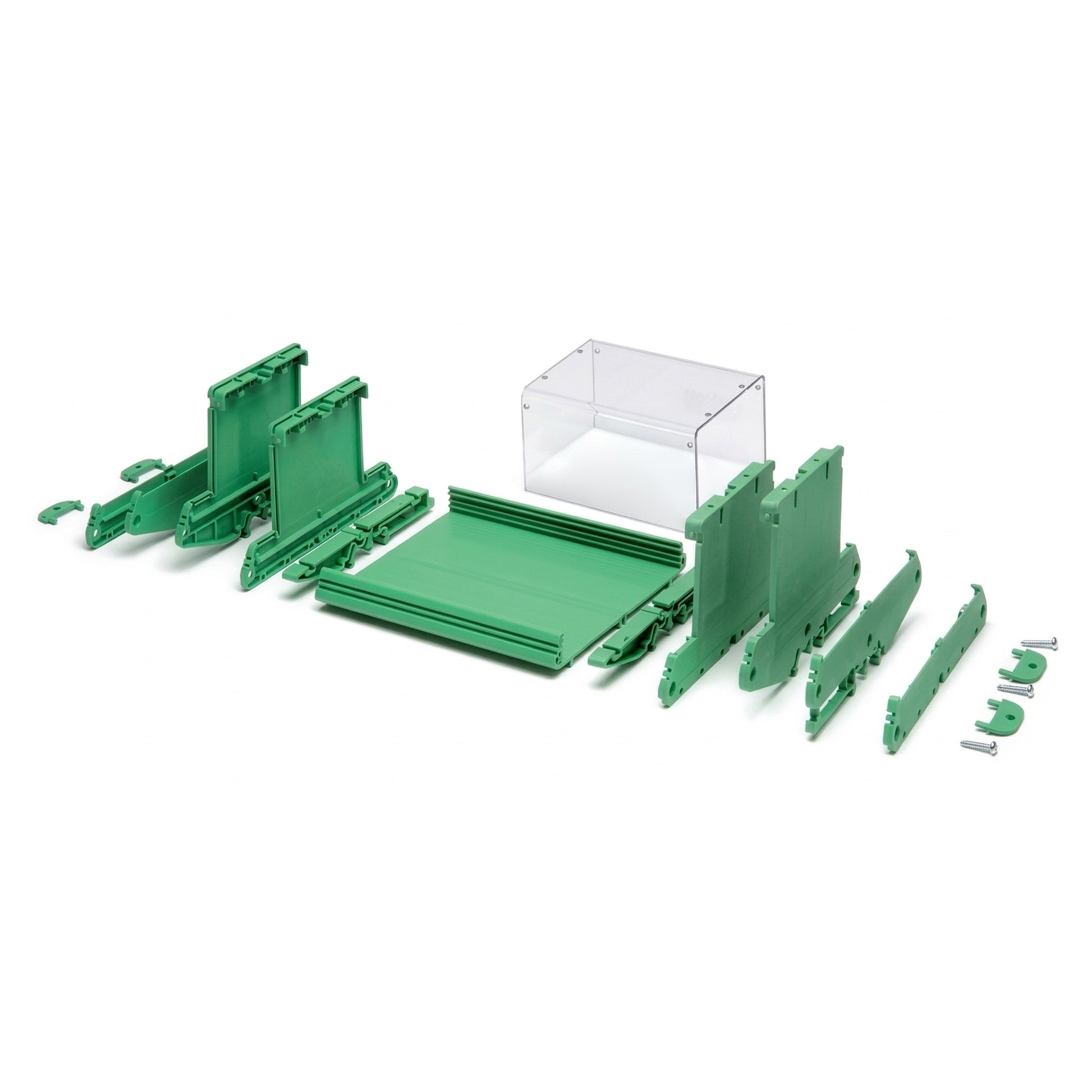

The Italtronic E107 Support product is a DIN Rail mounting system to attach 107 mm wide PC Boards to a DIN Rail. The base is an extrusion up to 2 meters long and can be cut to any length to fit the other dimension of your PCB. End caps, feet and screws complete the assembly with options for end cap with feet and top hat style end caps with covers are different options that complete the DIN Rail Enclosure.
Features
Color: Green or Black
Material: Self-extinguishing PVC UL 94V-0 (Profile support) Self-extinguishing Polyamide 6.6 UL 94V-0 (Lateral Elements)
Length of Extrusion: 1 Meter is the standard length of the extrusion. Custom sizes also available.
