E72 PCB DIN Rail Support

The Italtronic E72 Support product is a DIN Rail mounting system to attach 72 mm wide PC Boards to a DIN Rail.  The base is an extrusion up to 2 meters long and can be cut to any length to fit the other dimension of your PCB.  End caps, feet and screws complete the assembly.

Features

• Color: Green or Black
• Material: Self-extinguishing PVC UL 94V-0 (Profile support) Self-extinguishing
• Polyamide 6.6 UL 94V-0 (Lateral Elements)
• Length Range: 30mm - 350mm

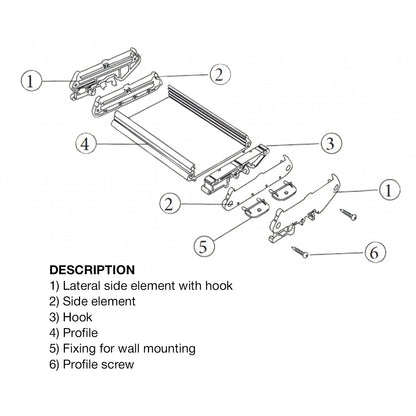

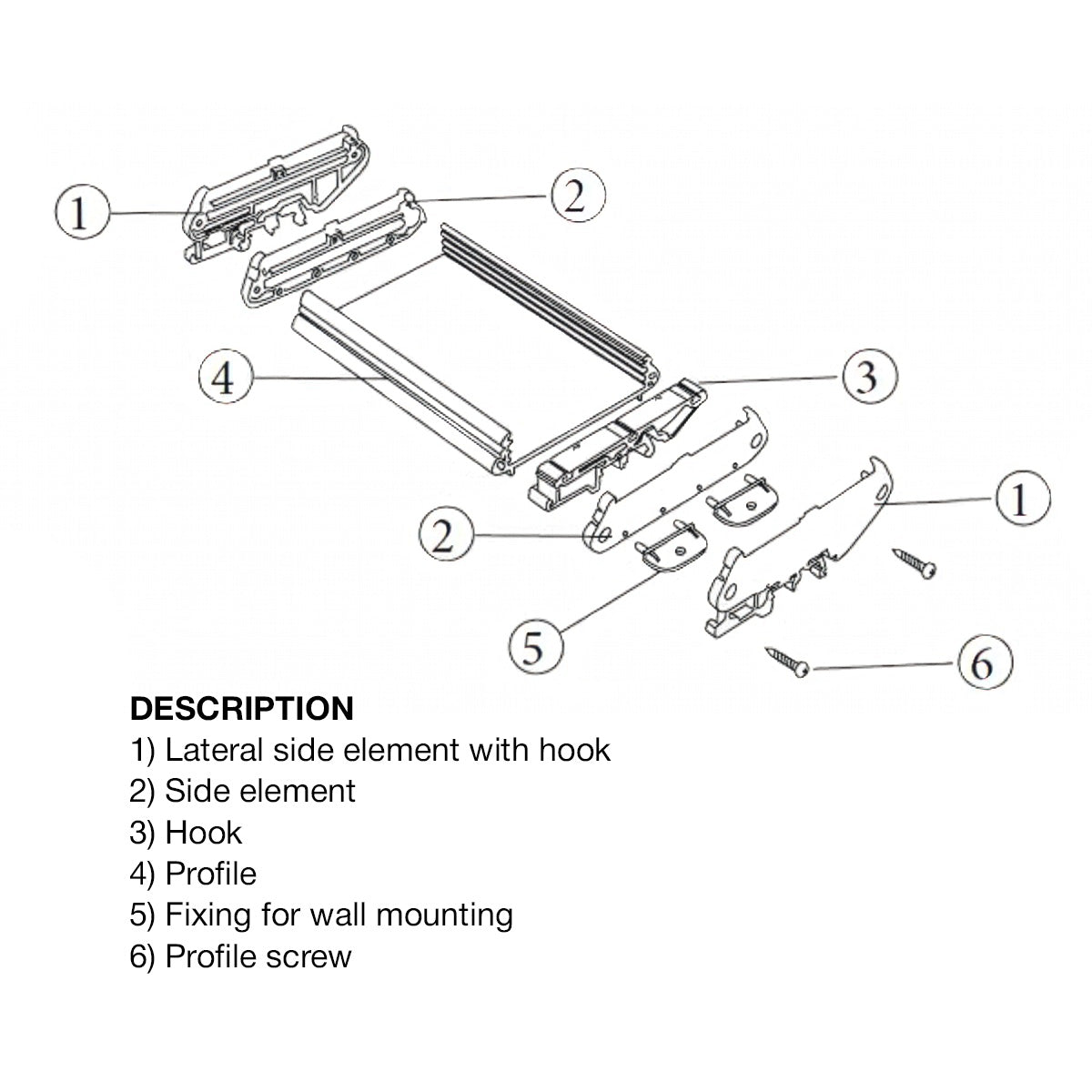

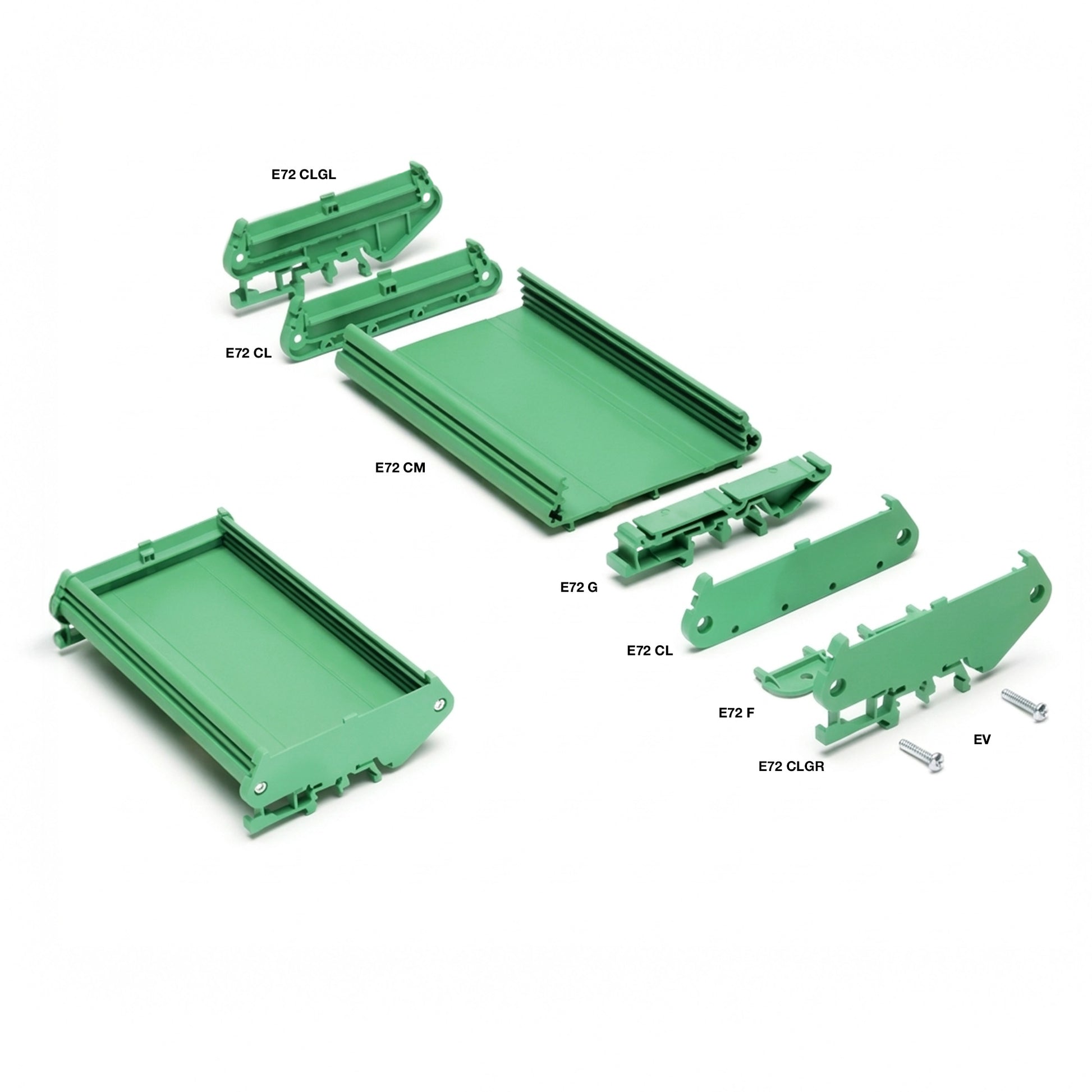

Model Types

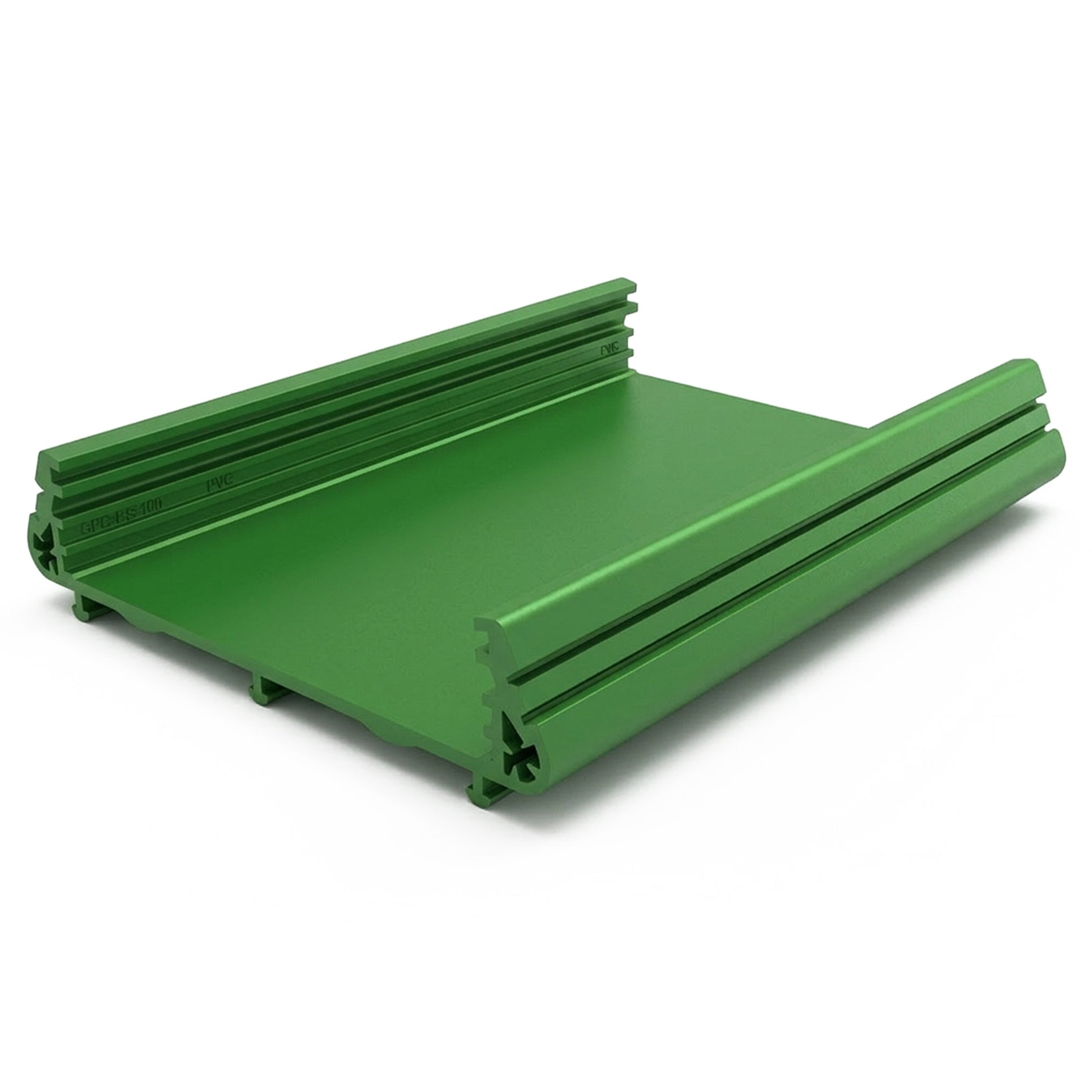

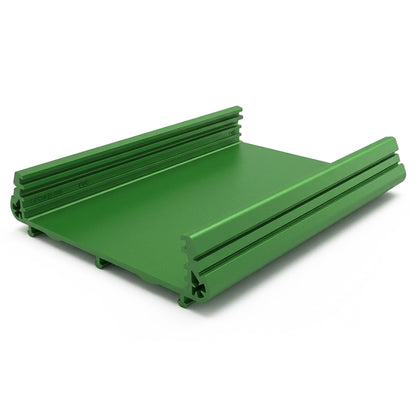

• E72MT1      1 Meter Long Base Profile for PCB

• E72MT2      2 Meter Long Base Profile for PCB

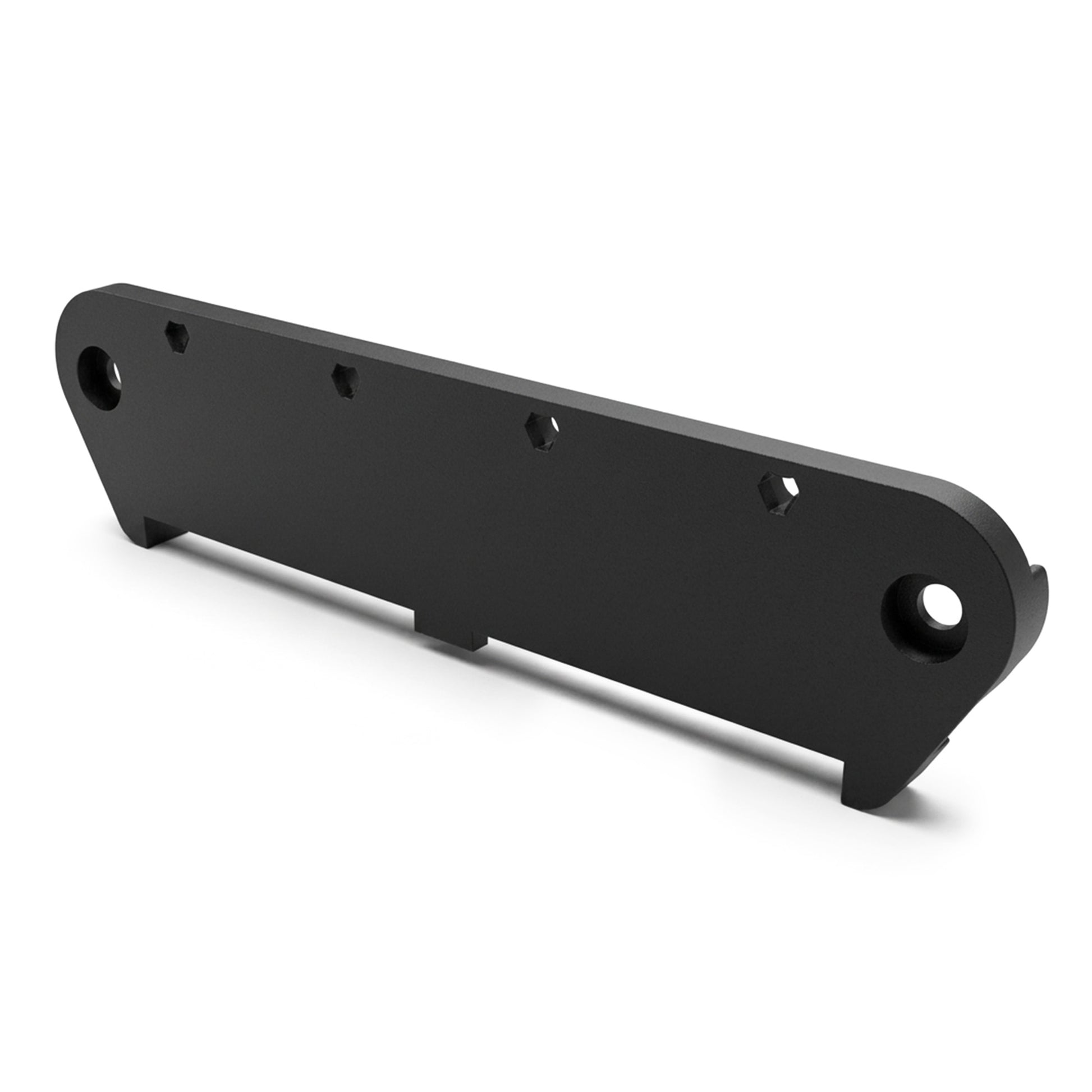

• E72CL         End Cap

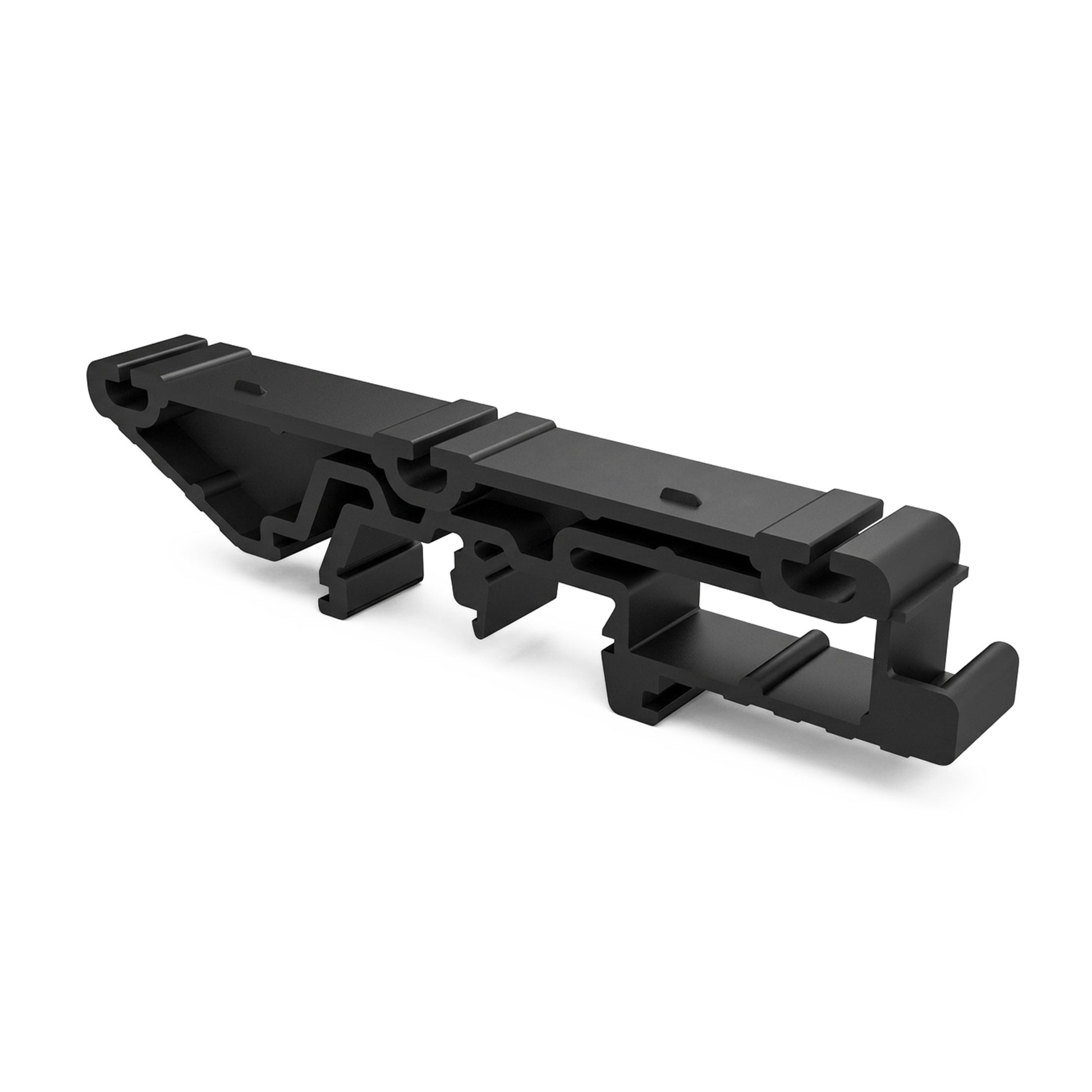

• E72g           DIN Rail Mounting Foot

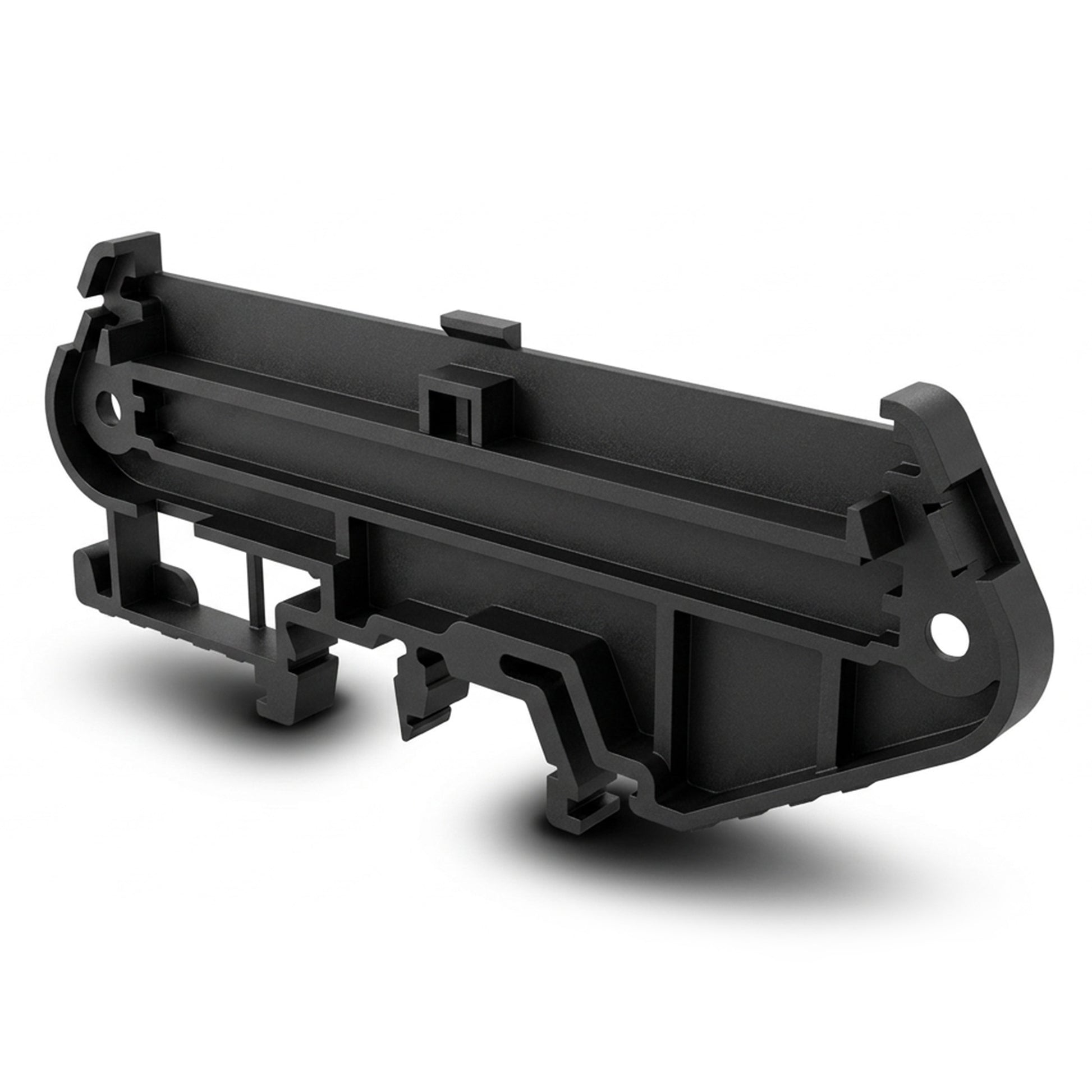

• E72CLGL     End Cap w/ Foot Left

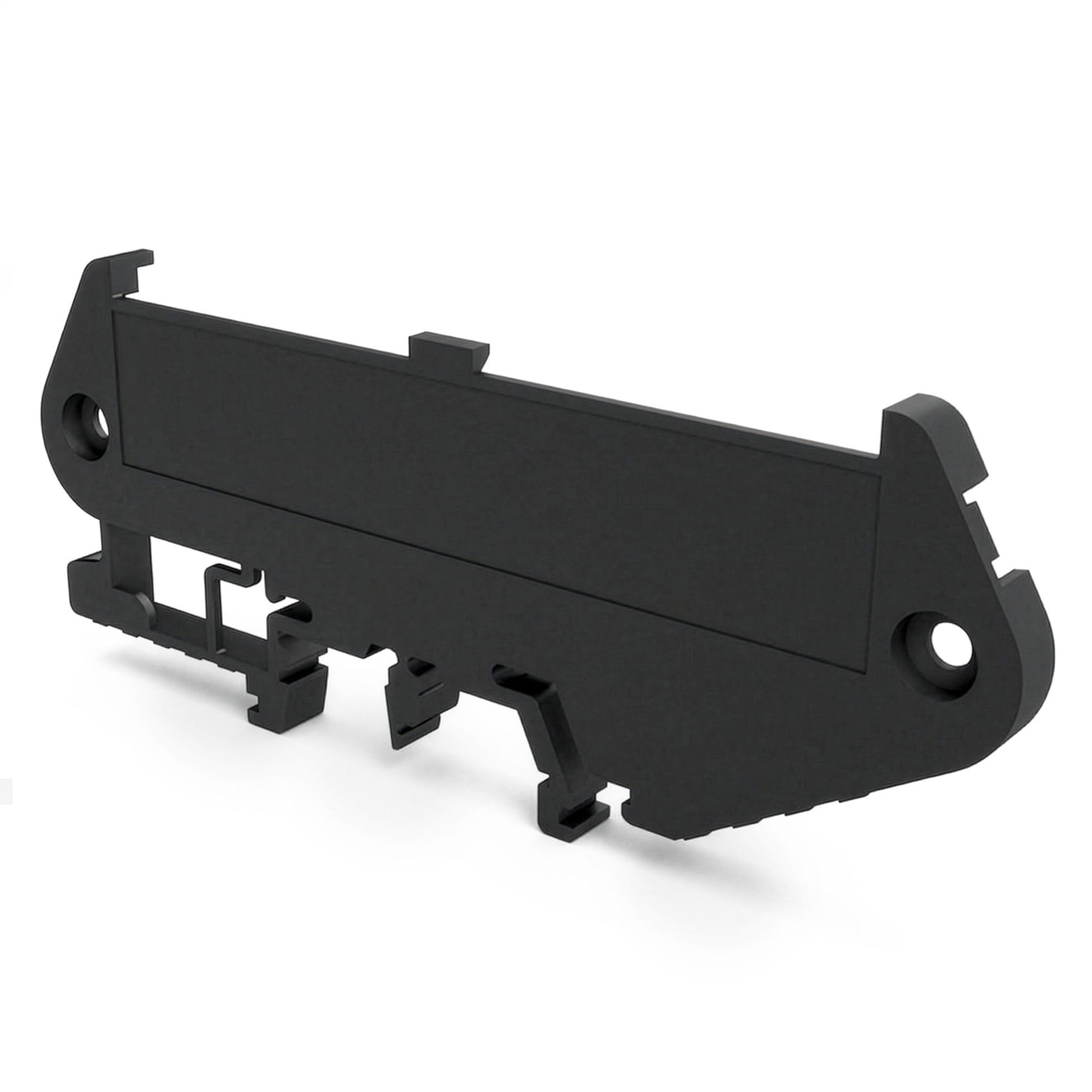

• E72CLGR     End cap w/ Foot Right

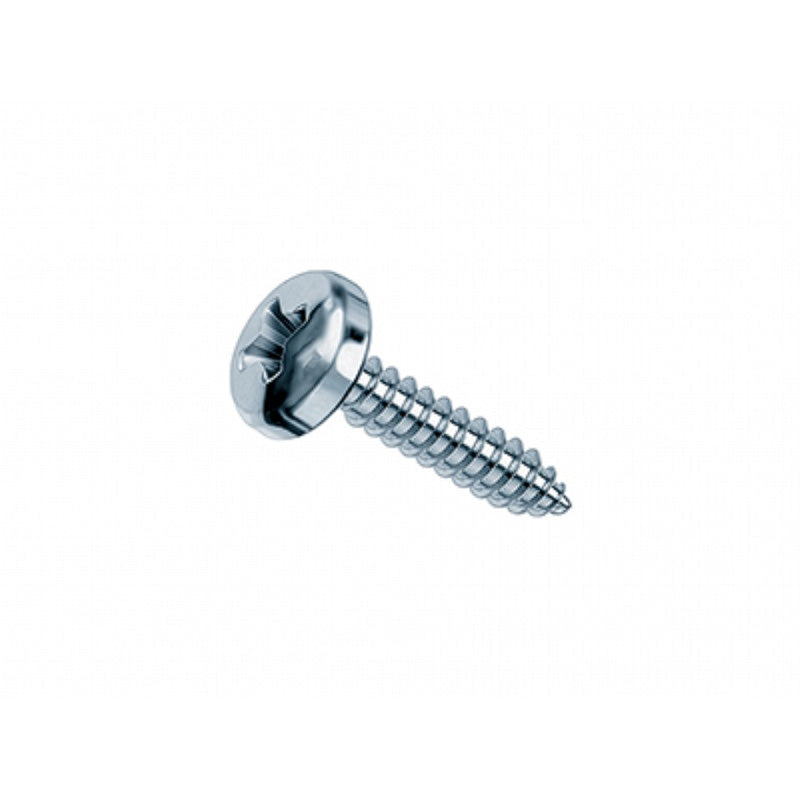

• EV               Profile Screws

• E72F            Wall Mounting Foot

• E72(*)CM    Custom Cut Base Assembly  (*) cm Long

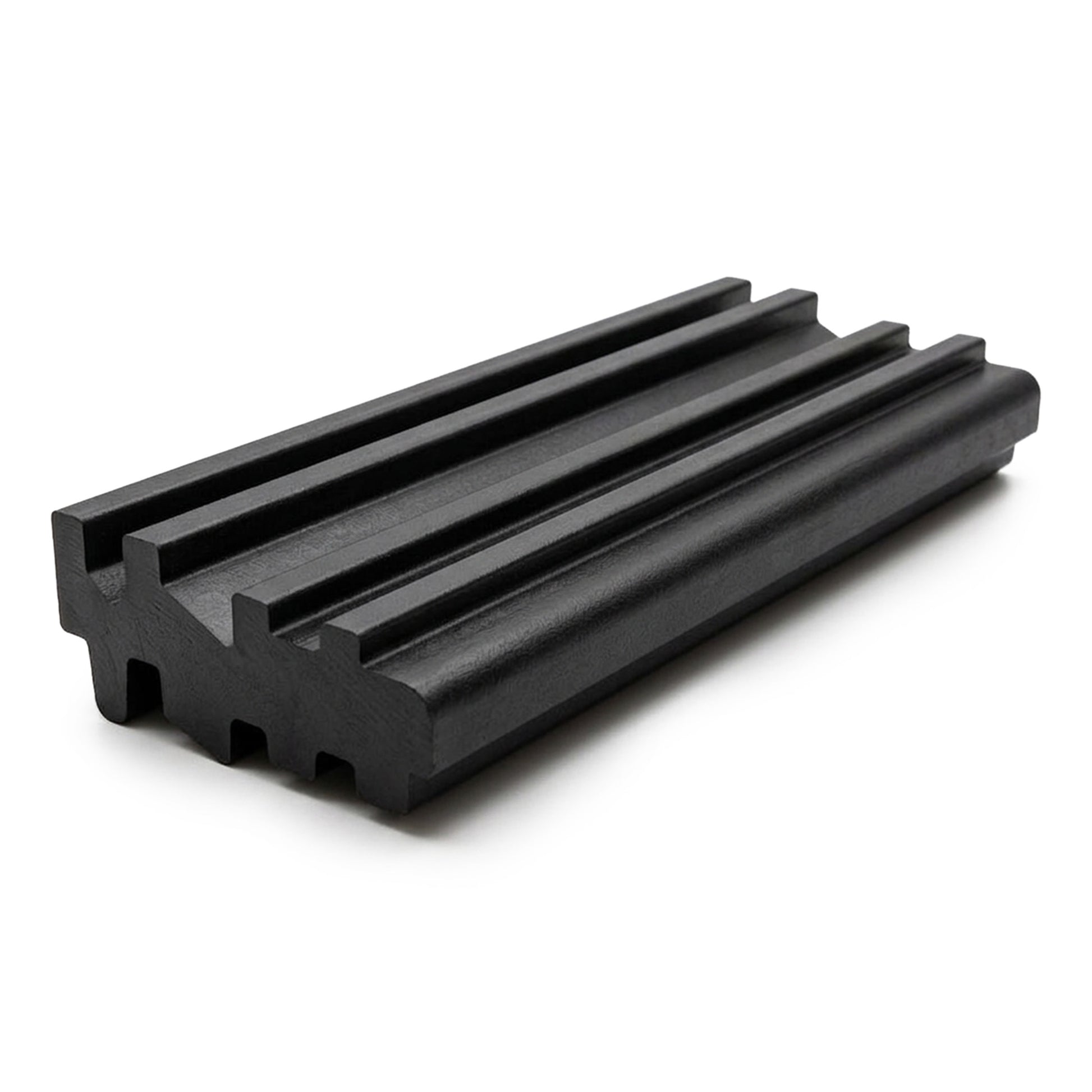

• E72A68       Adapter accessory for PCB or 68mm
