Features

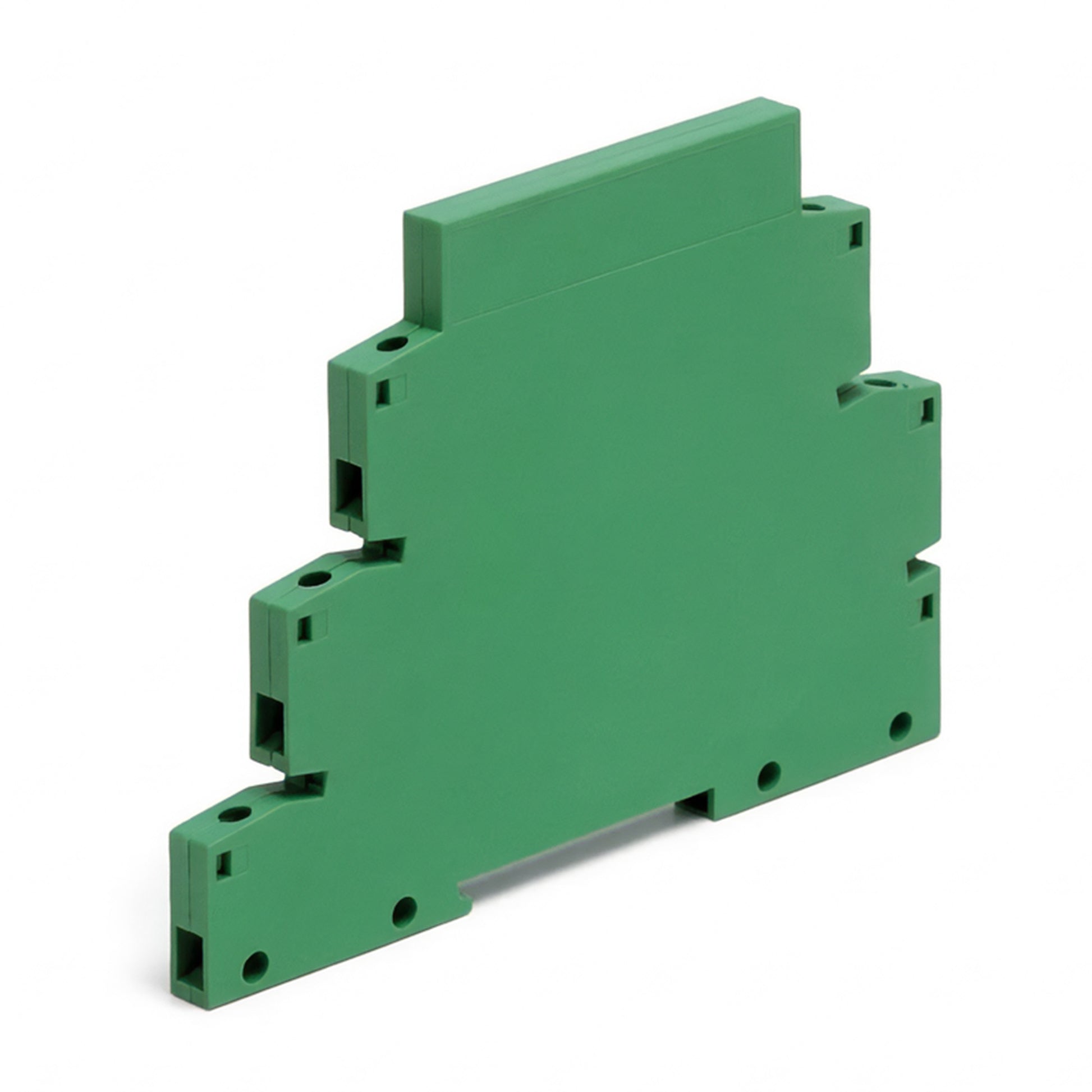

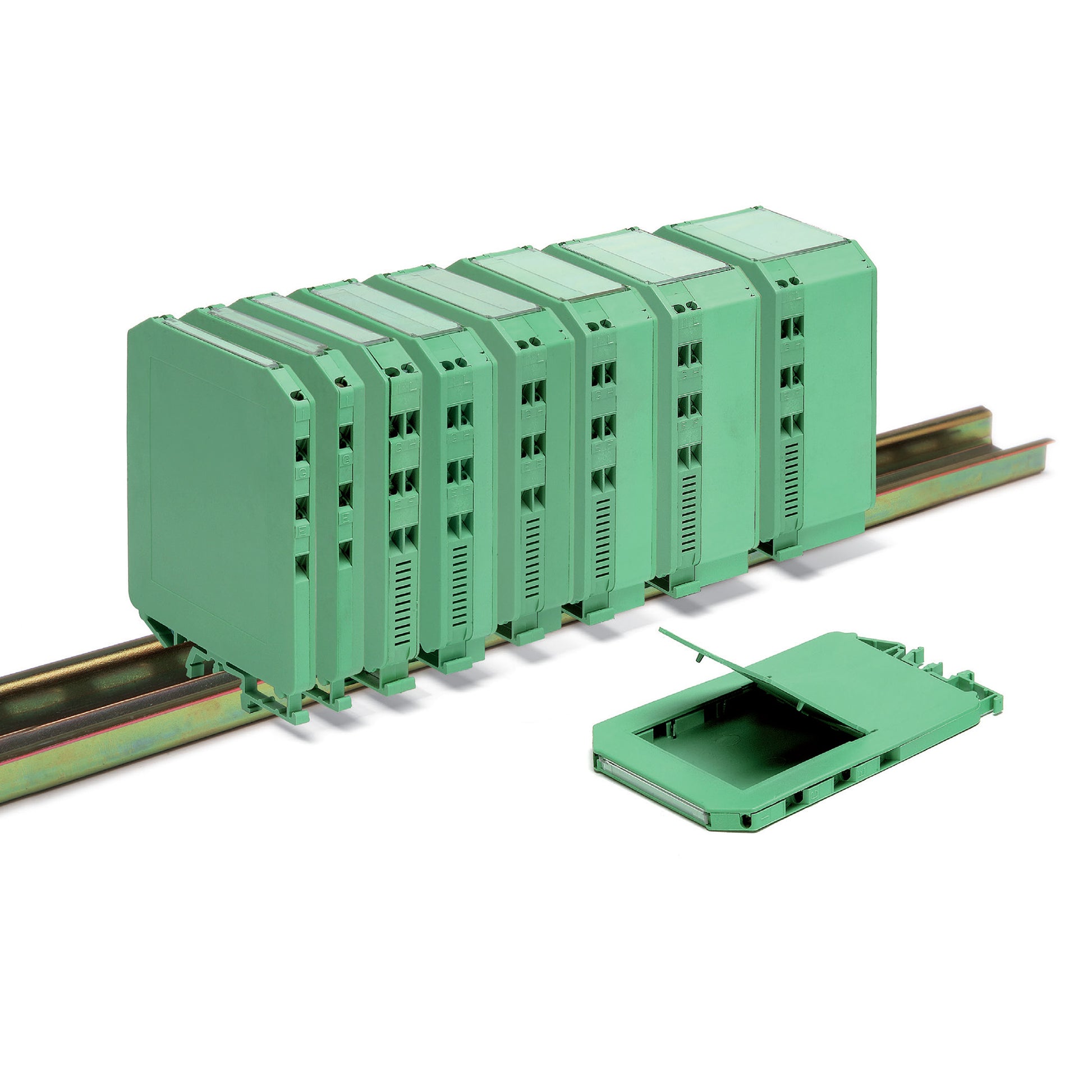

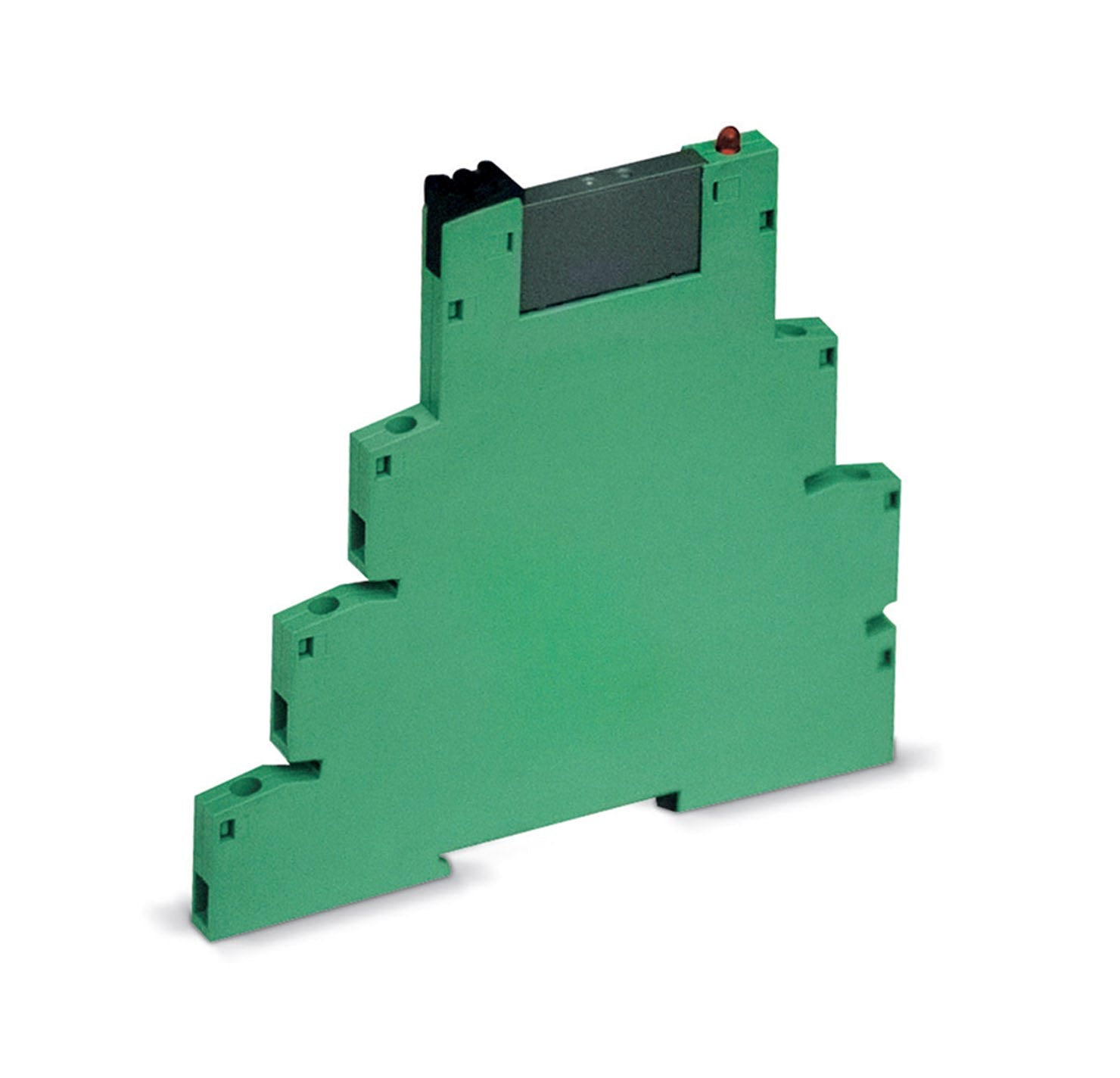

The GUIDEBOX and GUIDEBOX COMPACT DIN Rail Mount Enclosure System is designed for a plastic shell or housing to design your own Industrial Electronic product with built in terminal blocks with 13 different sizes to mount on the three sizes of DIN Rail.

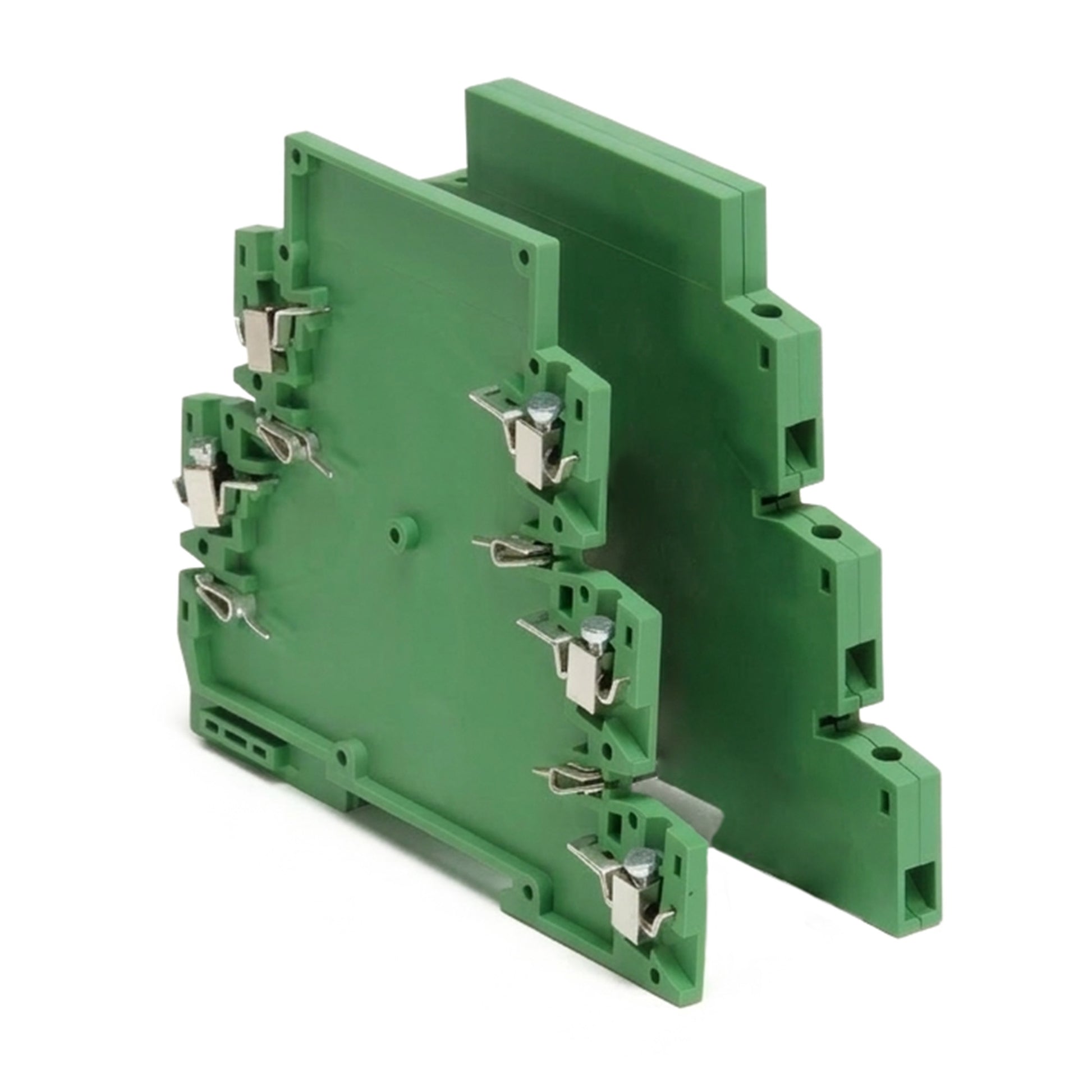

GUIDEBOX is a technical solution with 6 to 20 integrated terminal locations designed to minimize the footprint of your product on the back of an electrical panel. Starting from the 6.5 mm size, it is possible to achieve7.5 mm and 10 mm sizes by only changing the cover. The 6.5 mm has an optional side door to access internally mount DIP switches, configuration potentiometers, etc. Positive features of the GUIDEBOX enclosure are: PCBs are easily mounted, the enclosure is assembled without screws, GUIDEBOX has reduced and compact dimensions, it is available in 11 different thicknesses and it has a wide range of accessories. This allows you to custom design your electronic component with a pre-made enclosure to produce low volumes and avoid tooling tooling costs.
Technical Specifications
|
Material |
PA66 |
|
UL94 Class |
V0 |
|
Color |
Green (6017) |
|
Sizes |
6.5, 7.5, 10, 12.5, 15, 17.5, 22.5, 22.5 S, 25, 30, 37.5, 45 |
|
Clamp |
15A; 120V (250V); 2.5 mm2 |
|
Operating temperature |
-40°C + 90°C (depending on power dissipation) |
Model Sizes

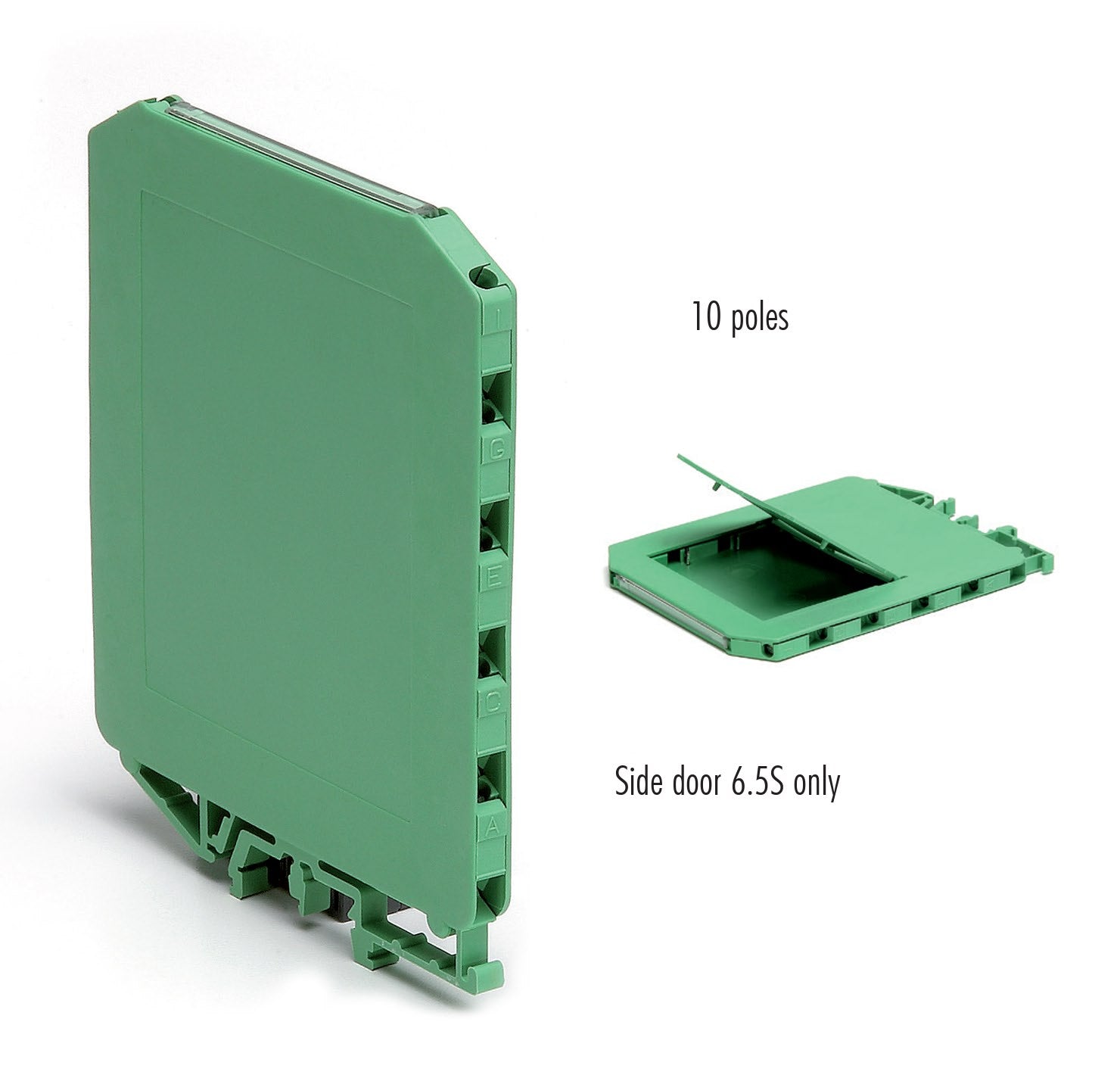

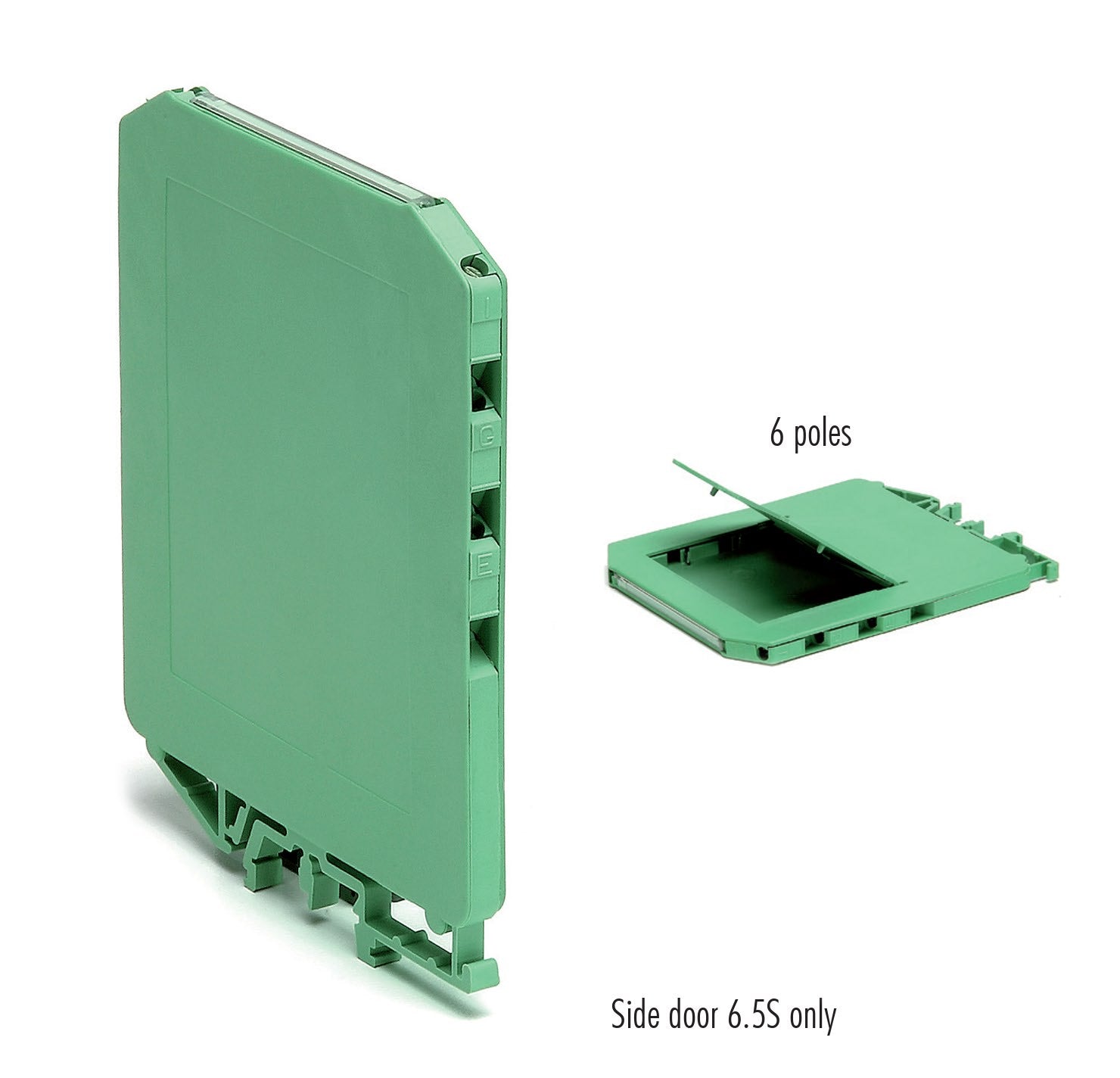

- 6.5 6.5mm Guidebox with 6 or 10 terminals
- 7.5 7.5mm Guidebox with 6 or 10 terminals

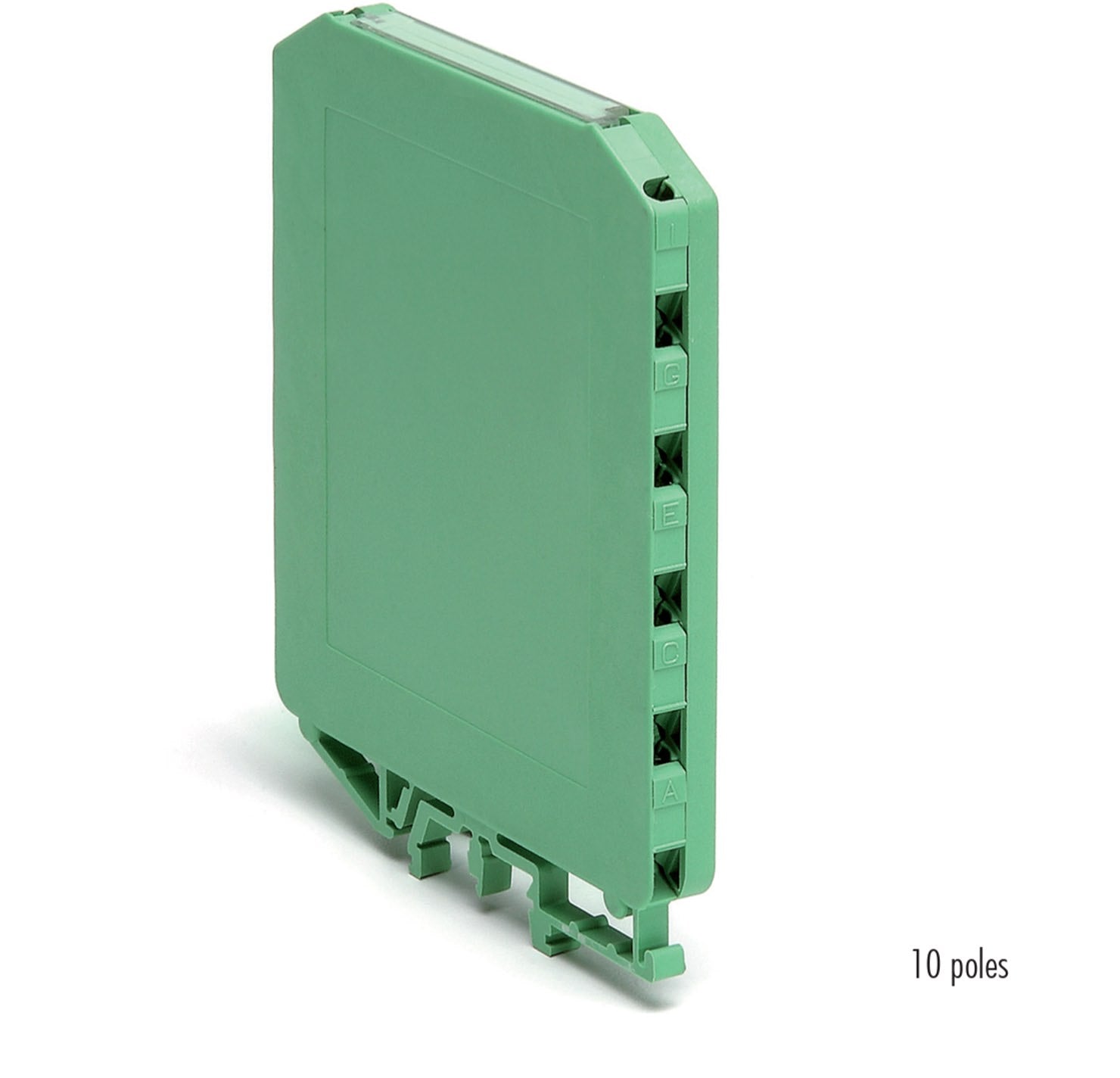

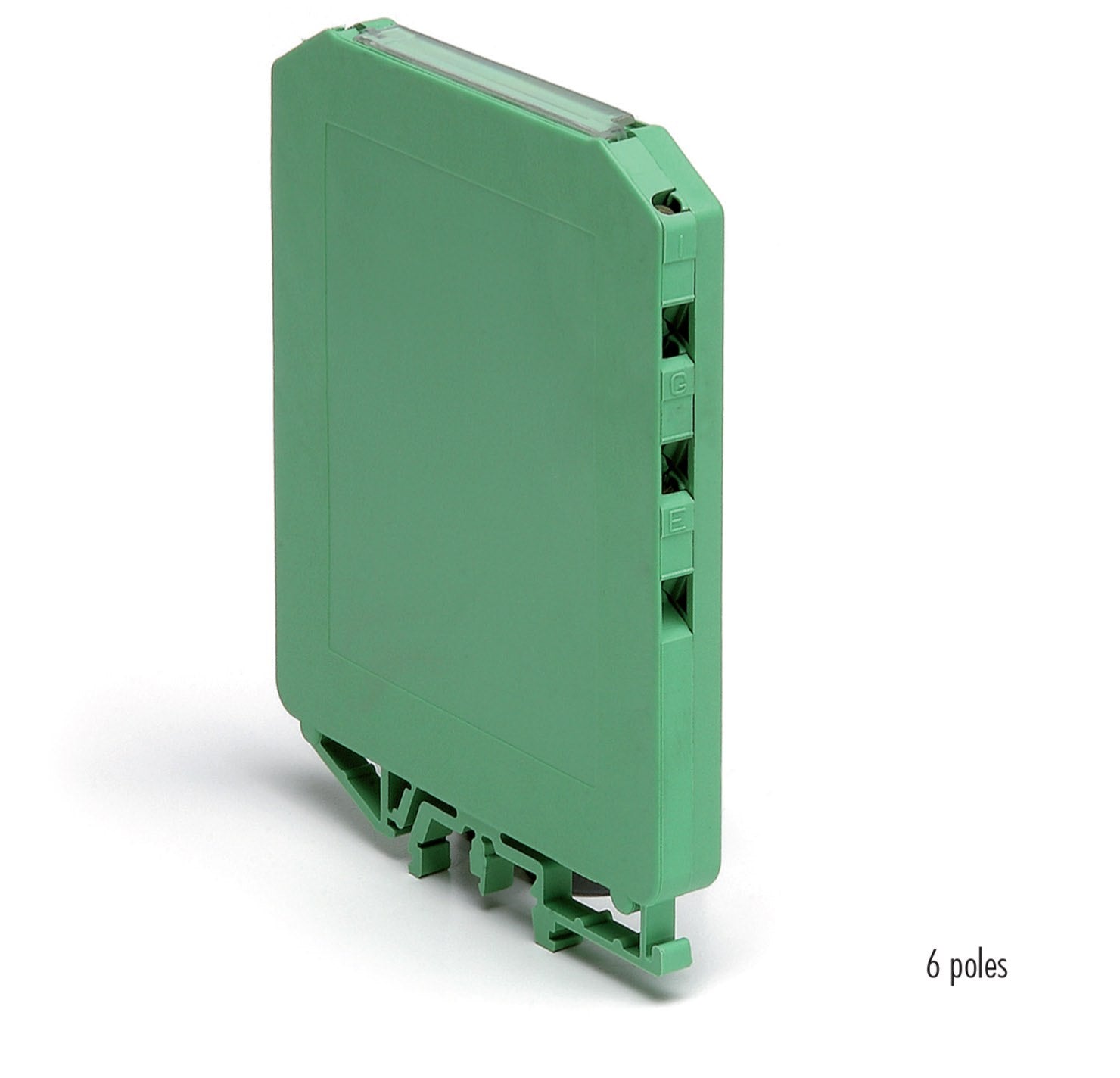

- 10 10mm Guidebox with 6 or 10 terminals

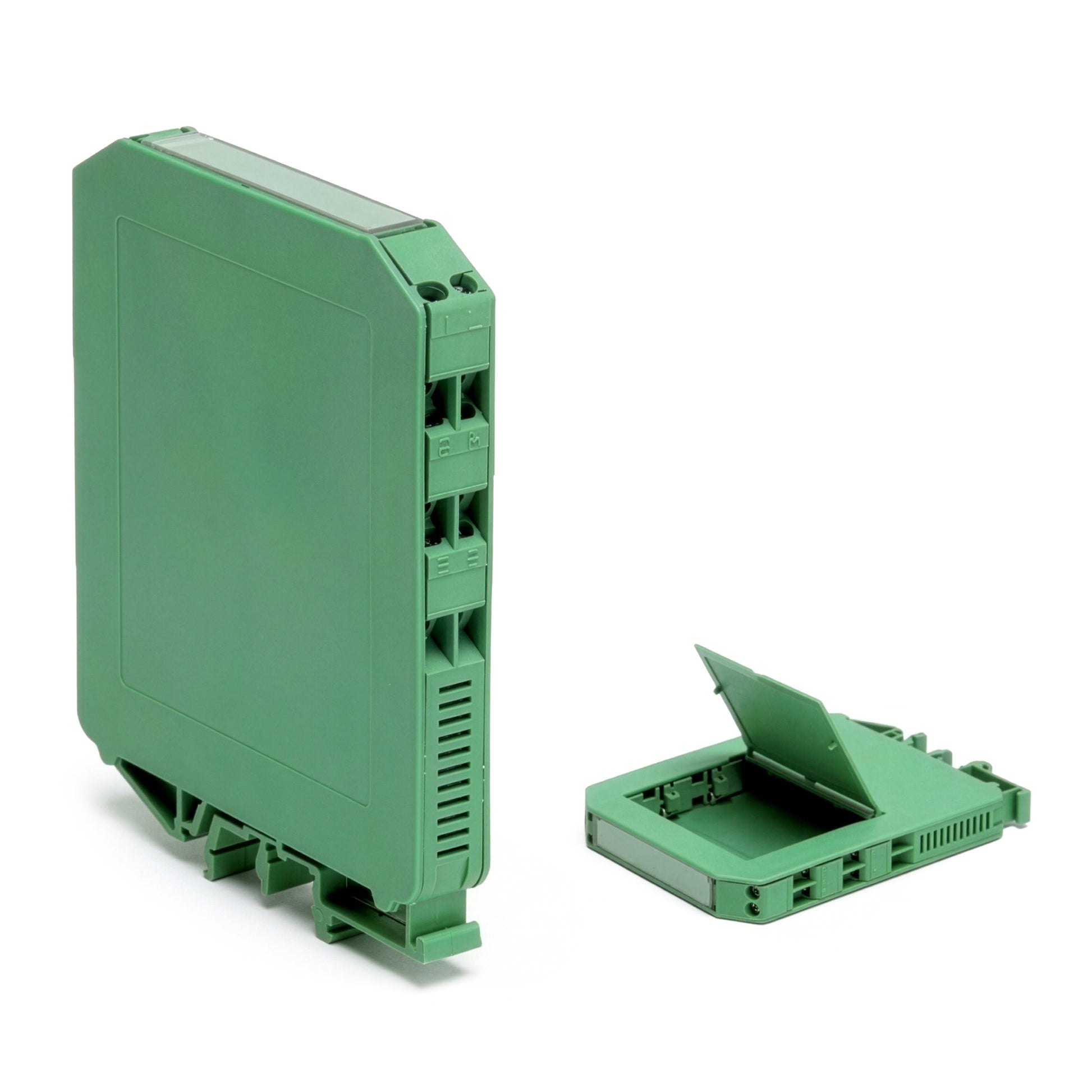

- 12.5 12.5mm Guidebox with 12 or 20 terminals

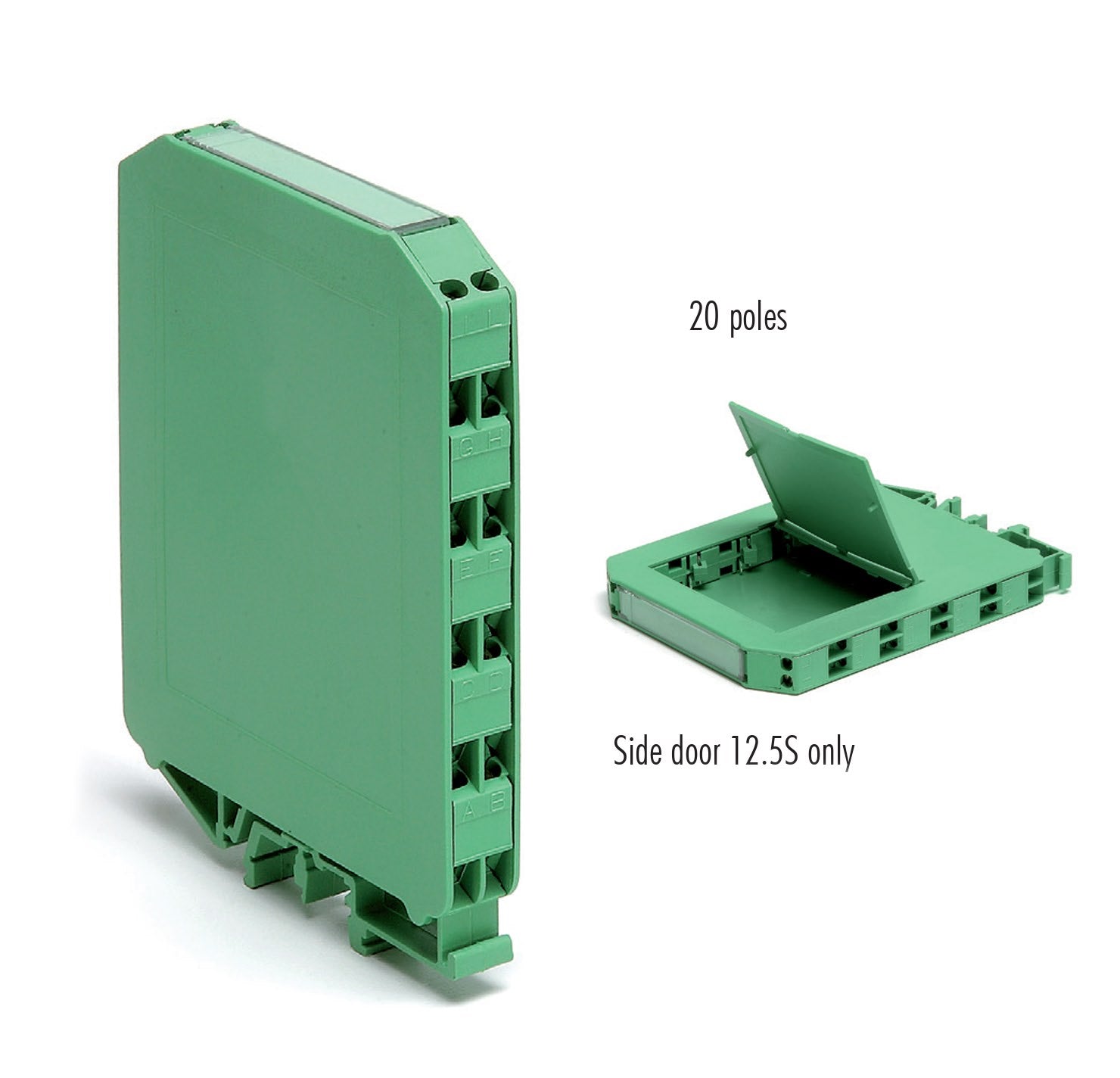

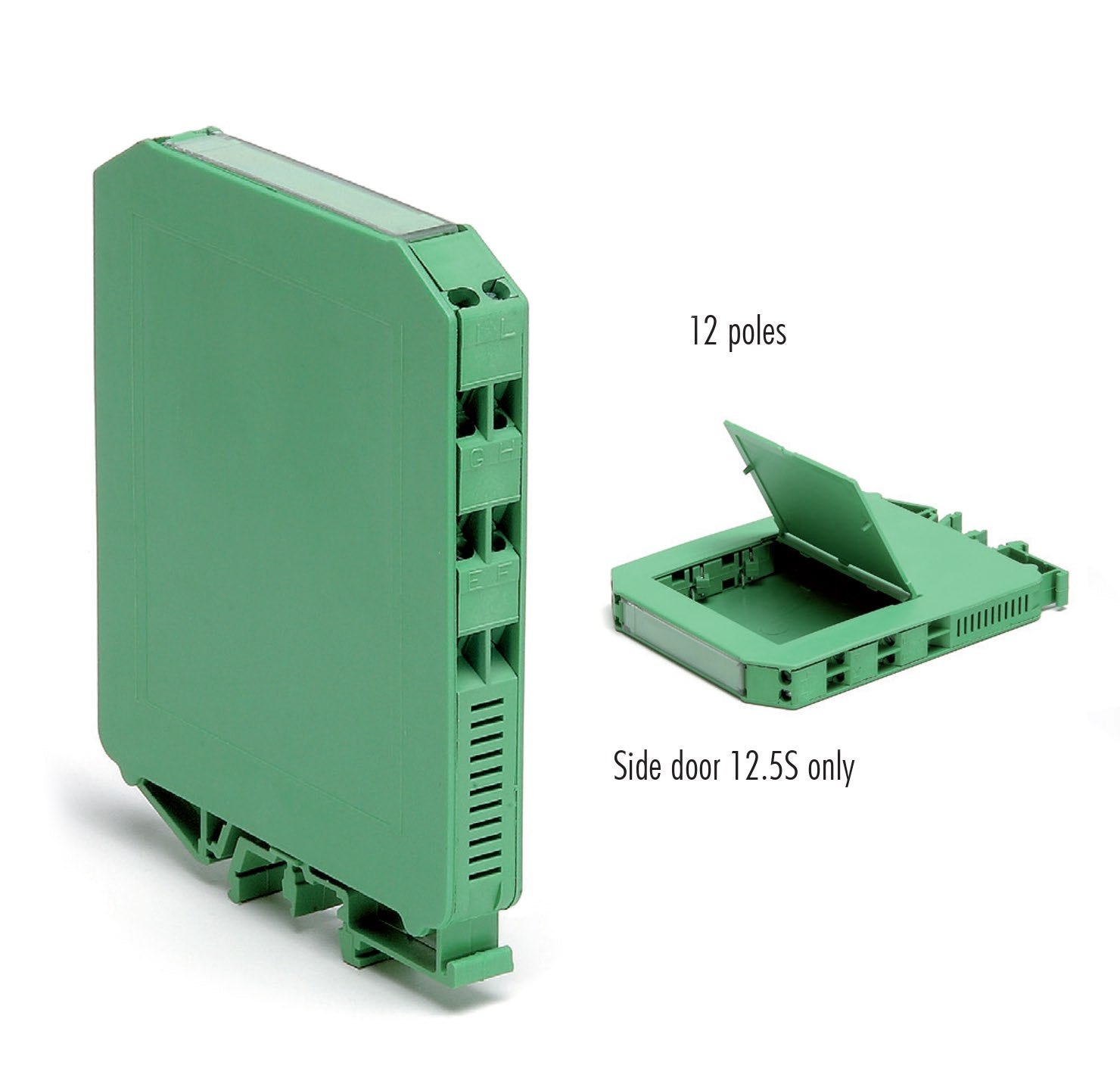

- 12.5 S 12.5mm Guidebox with 12 or 20 terminals with side door
- 15 15mm Guidebox with 12 or 20 terminals

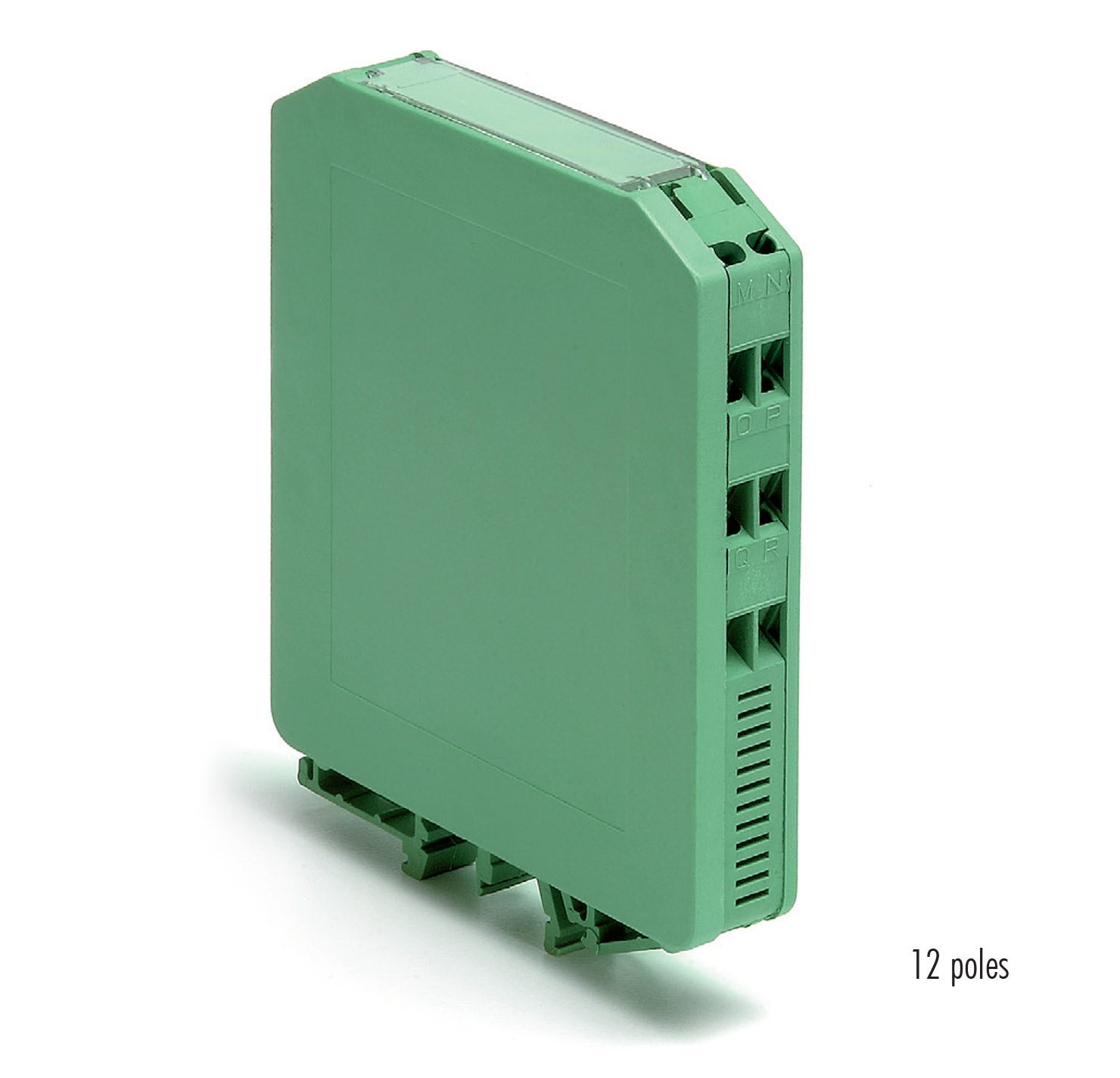

- 17.5 17.5mm Guidebox with 12 or 20 terminals

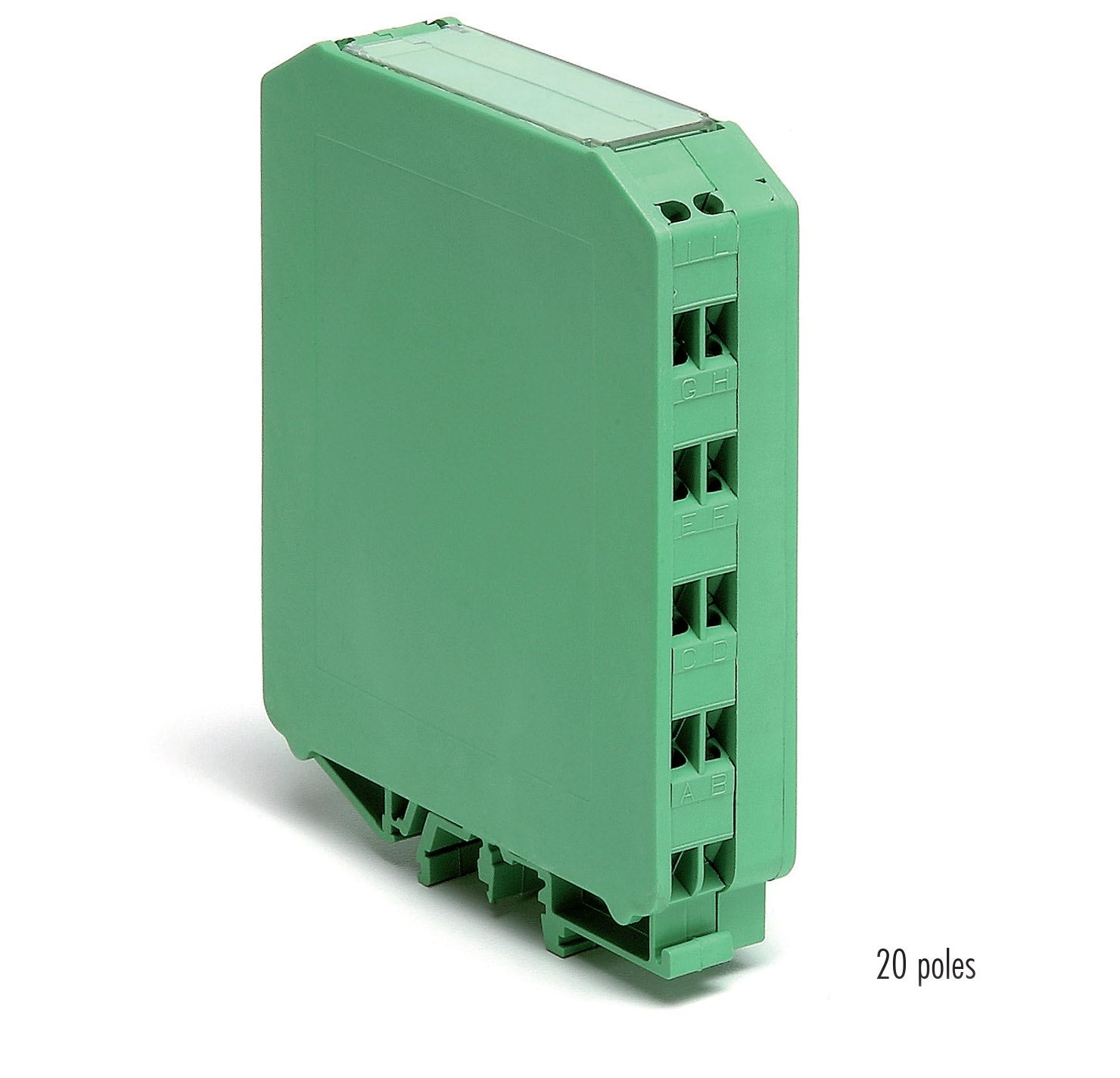

- 22.5 22.5mm Guidebox with 12 or 20 terminals
- 22.5 S 22.5mm Guidebox with 12 or 20 terminals with side door
- 25 25mm Guidebox with 12 or 20 terminals

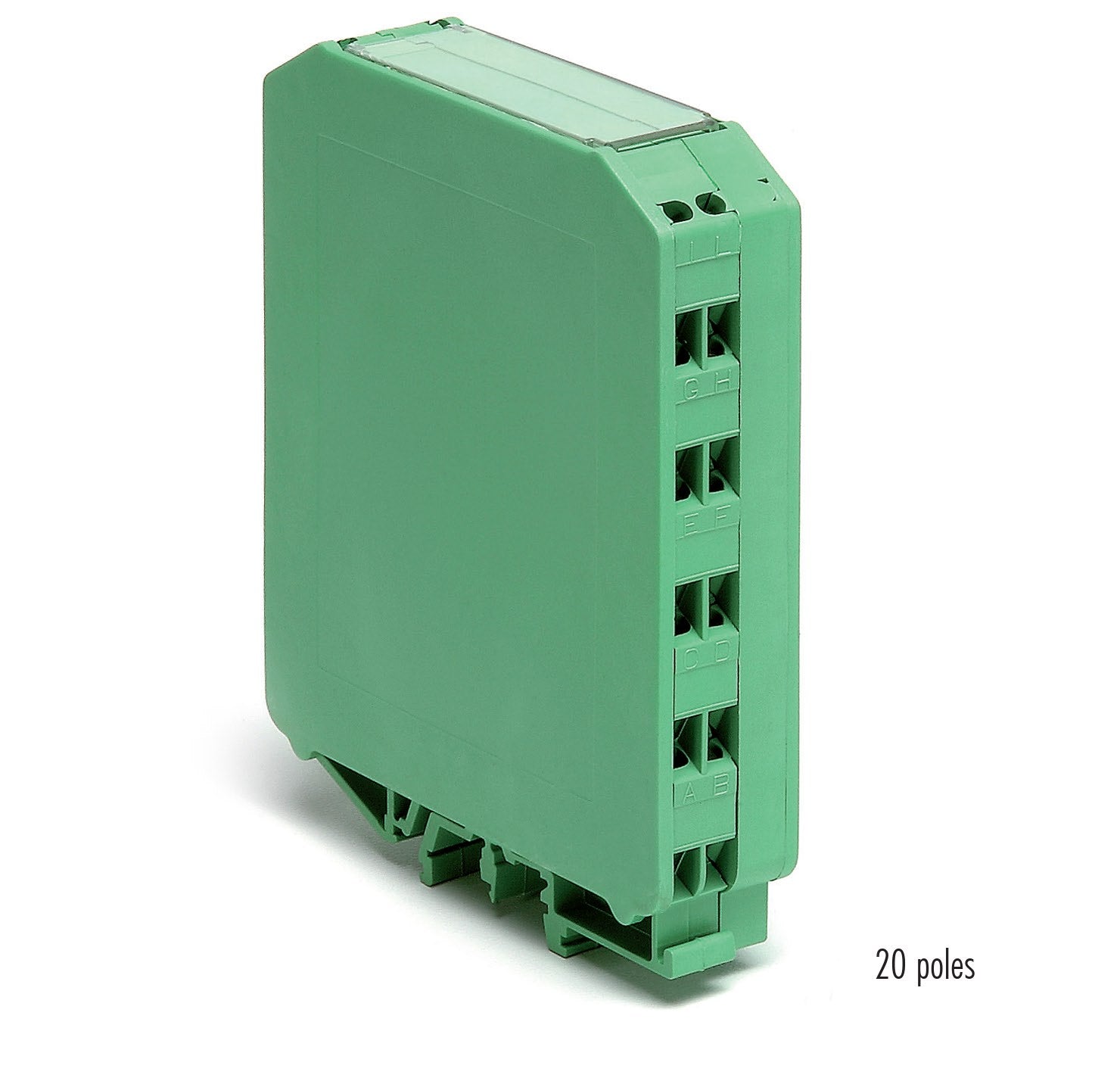

- 30 30mm Guidebox with 12 or 20 terminals

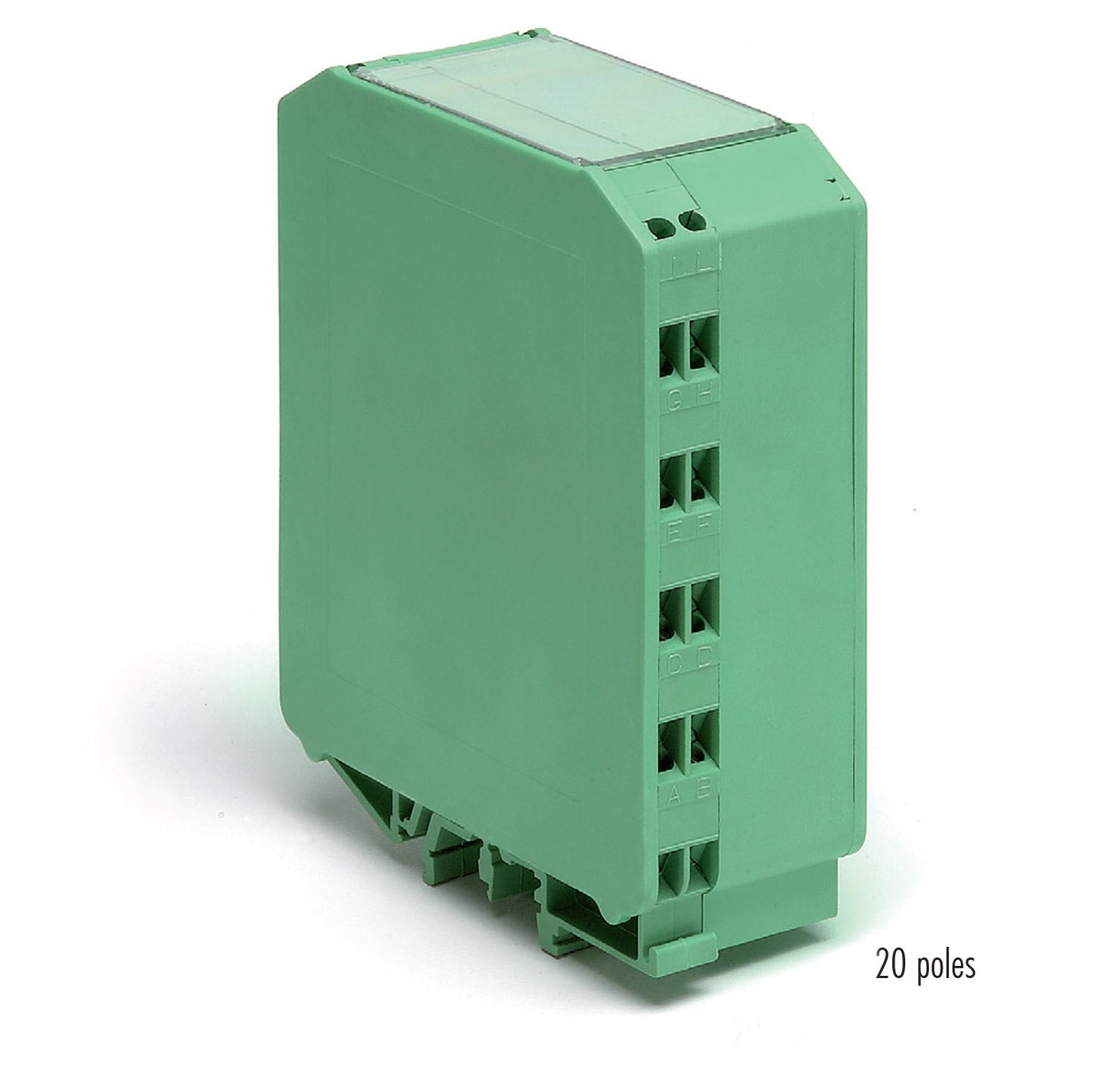

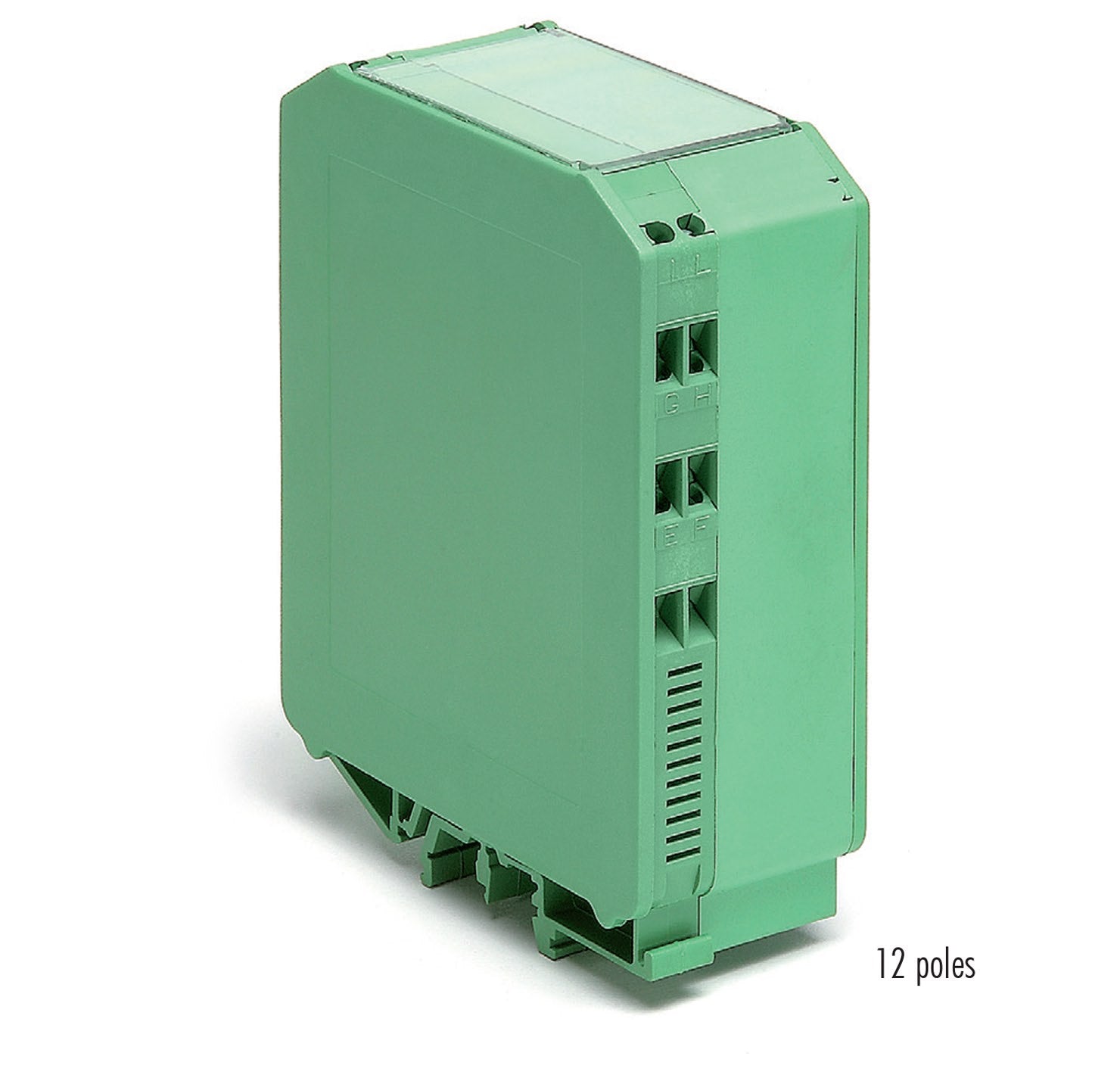

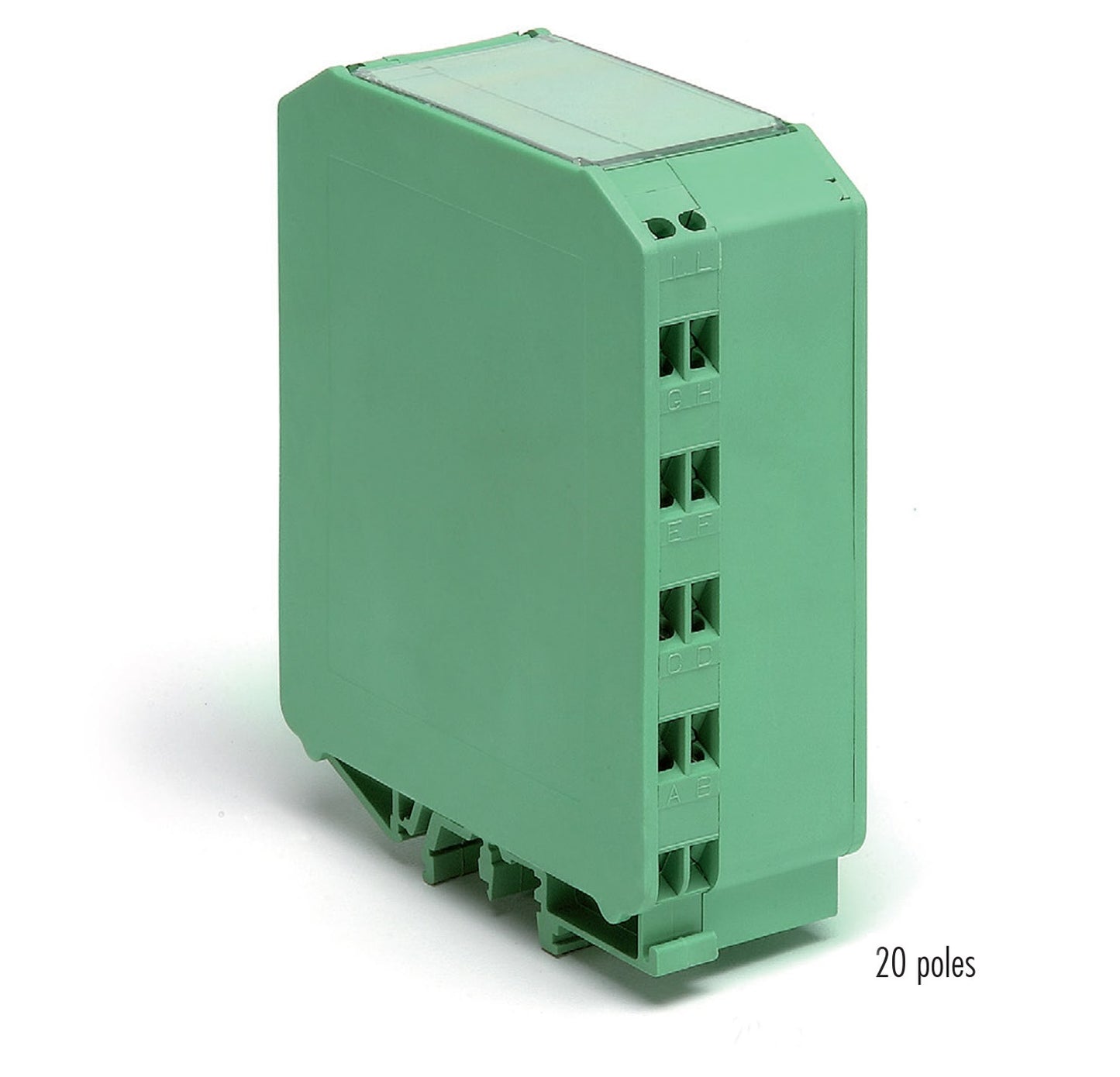

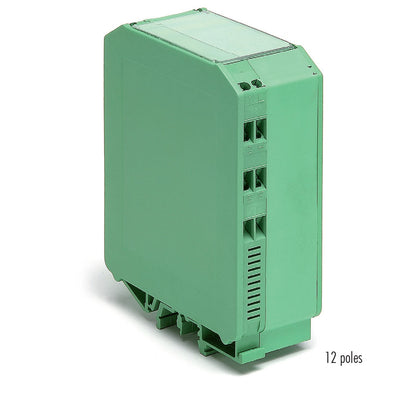

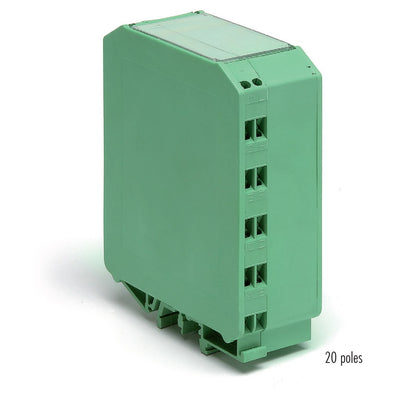

- 37.5 37.5mm Guidebox with 12 or 20 terminals

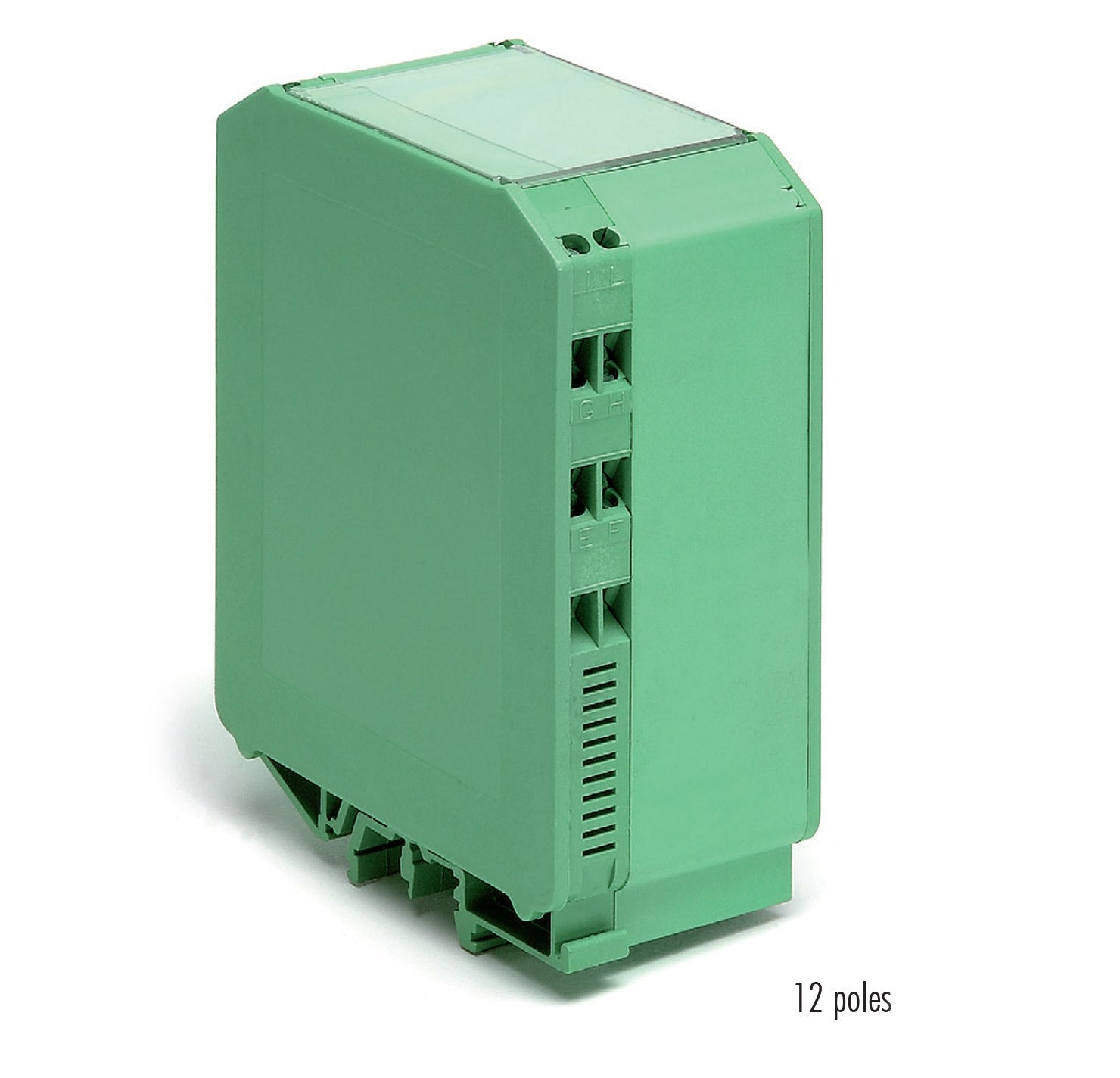

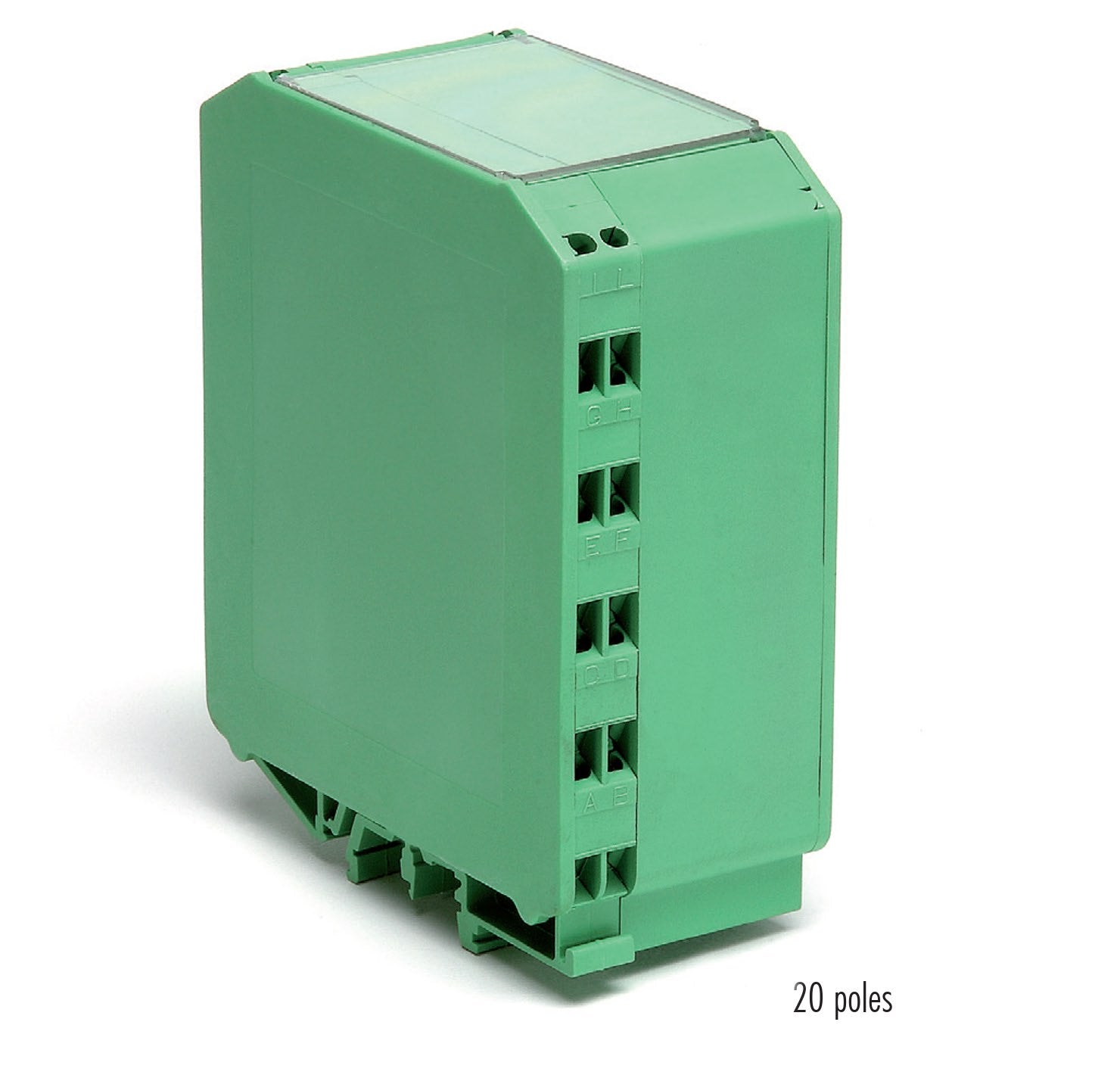

- 45 45mm Guidebox with 12 or 20 terminals
Compatible DIN rail
