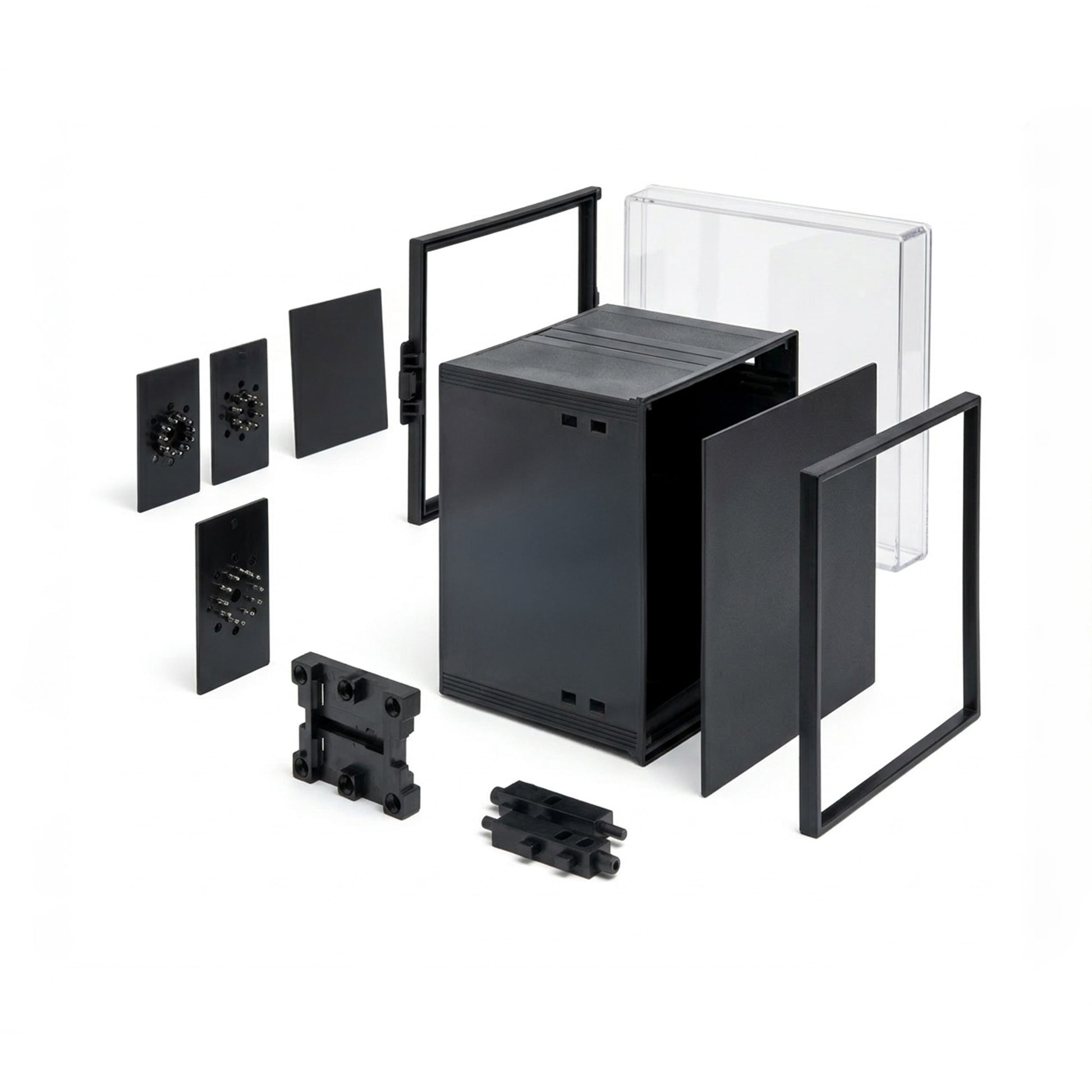

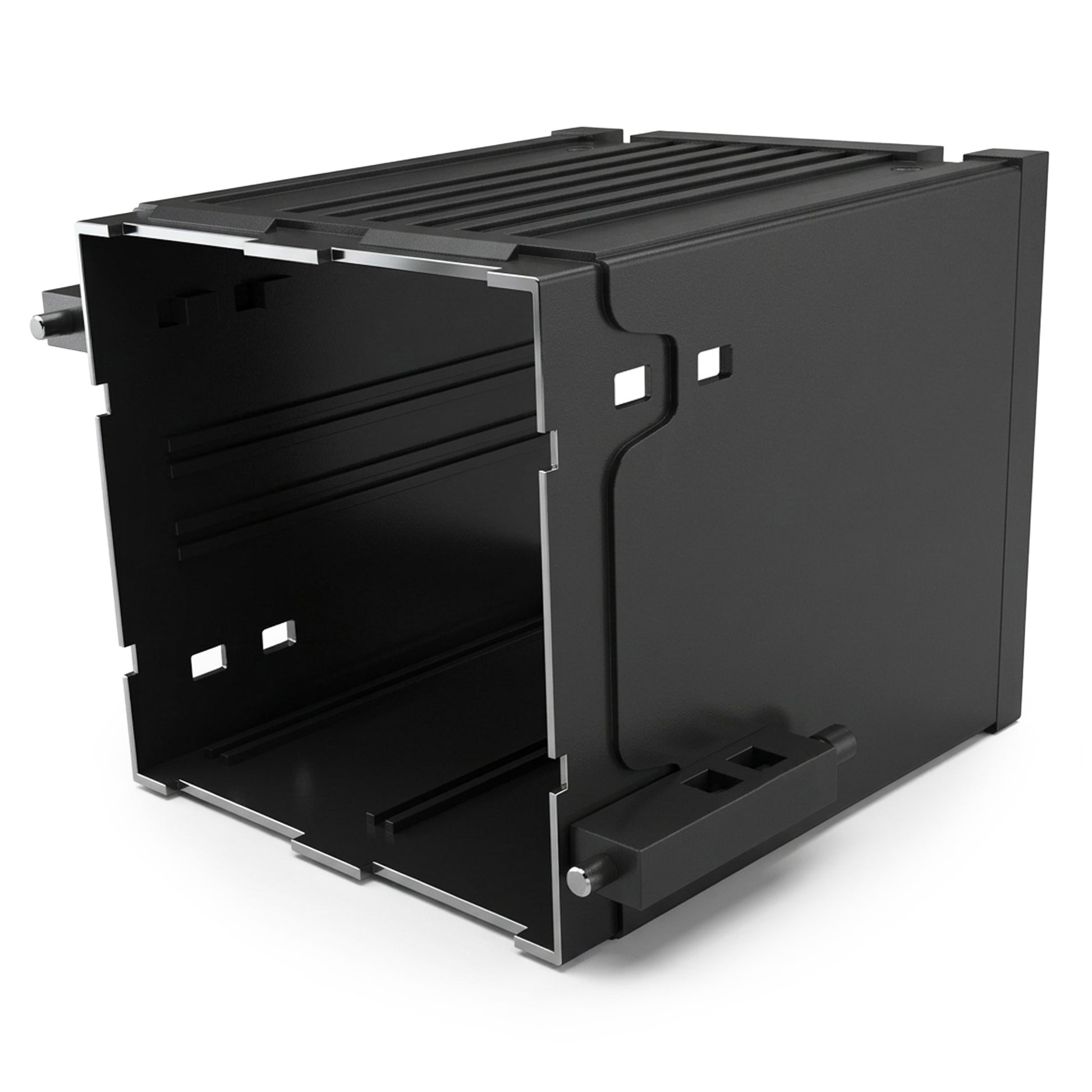

INCABOX is a panel mounting enclosure for electronic products. It has been designed for use with machining equipment and can be mounted on the front panel of the electrical control system. It is designed and manufactured to IEC 61554 (ex DIN 43700) and its front frame is an integrated part of the main body of the enclosure whereas the rear frame is inserted by a snap-lock mechanism. The front panel is the part which is seen by the user and it is inserted into the enclosure by use of a snap-lock mechanism. LCD displays and or push button switches can be mounted on the PCB behind the front panel and can be viewed or accessed through pre-machined cut-outs. The PCB is inserted from the rear side of the enclosure using the internal PCB guides. However, type 144x144, and other versions are available where the PCB can be inserted from either the front or rear of the enclosure. INCABOX is a versatile enclosure, easy to use and ergonomic thanks to the wide range of standard dimensions, special dimensions upon request, diverse typologies of front and rear panels, possible machining and silk printing processes and the availability of protection covers.
Features:
Operating Temperatures -40°C + 80°C (Based on the power dissipated)
Material PP0
Model Types
Incabox
Standard Enclosure
Incabox XT
Enclosure w/ added features
Incabox XTS
Enclosure w/ added features and custom accessories
36.72
36x72mm enclosure
72.72
72x72mm enclosure
72.144
72x144mm enclosure
48.48 B
48x48mm enclosure
48.48 M
48x48mm enclosure
48.96 B
48x96mm enclosure

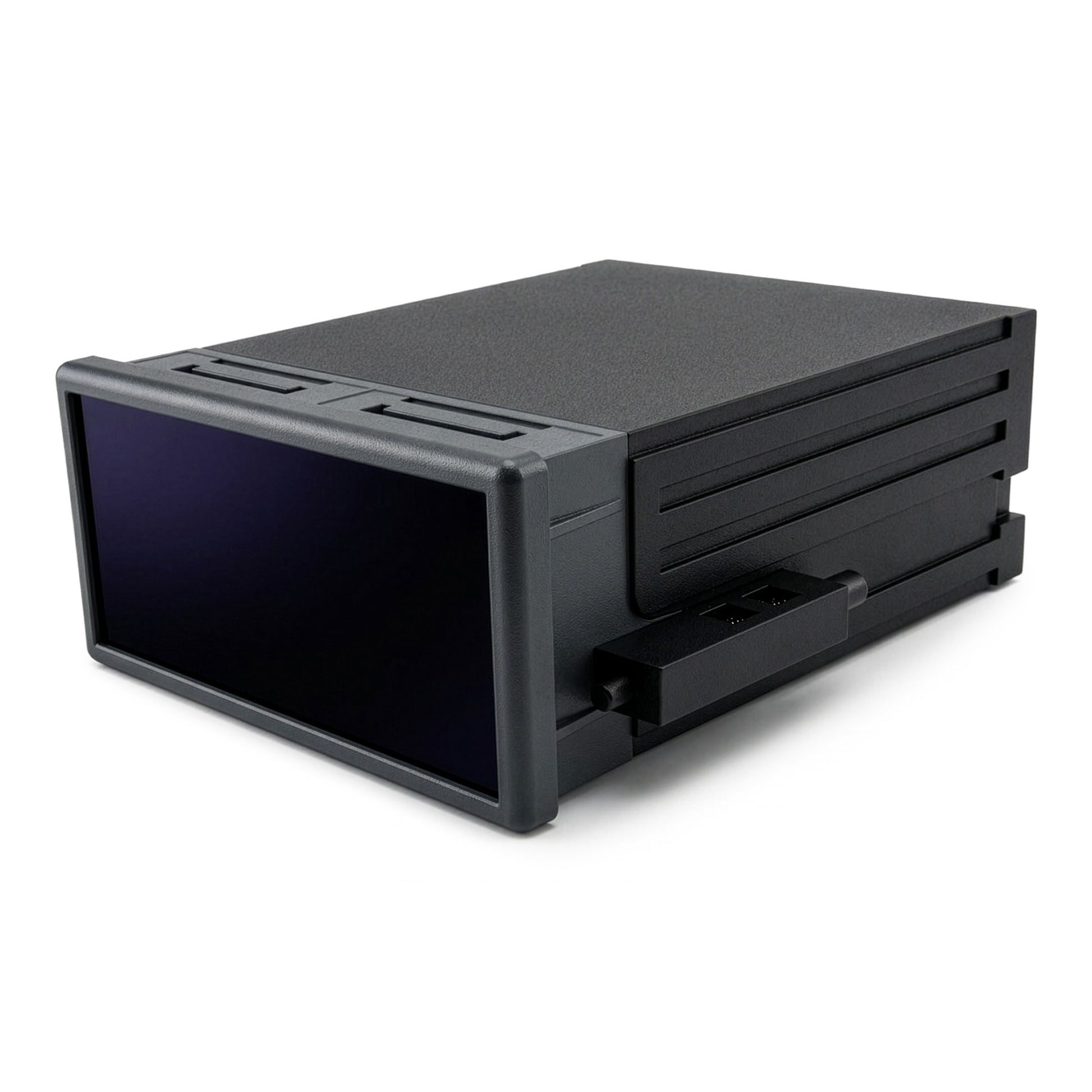

48.96 M
48x96mm enclosure
96.96 B
96x96mm enclosure

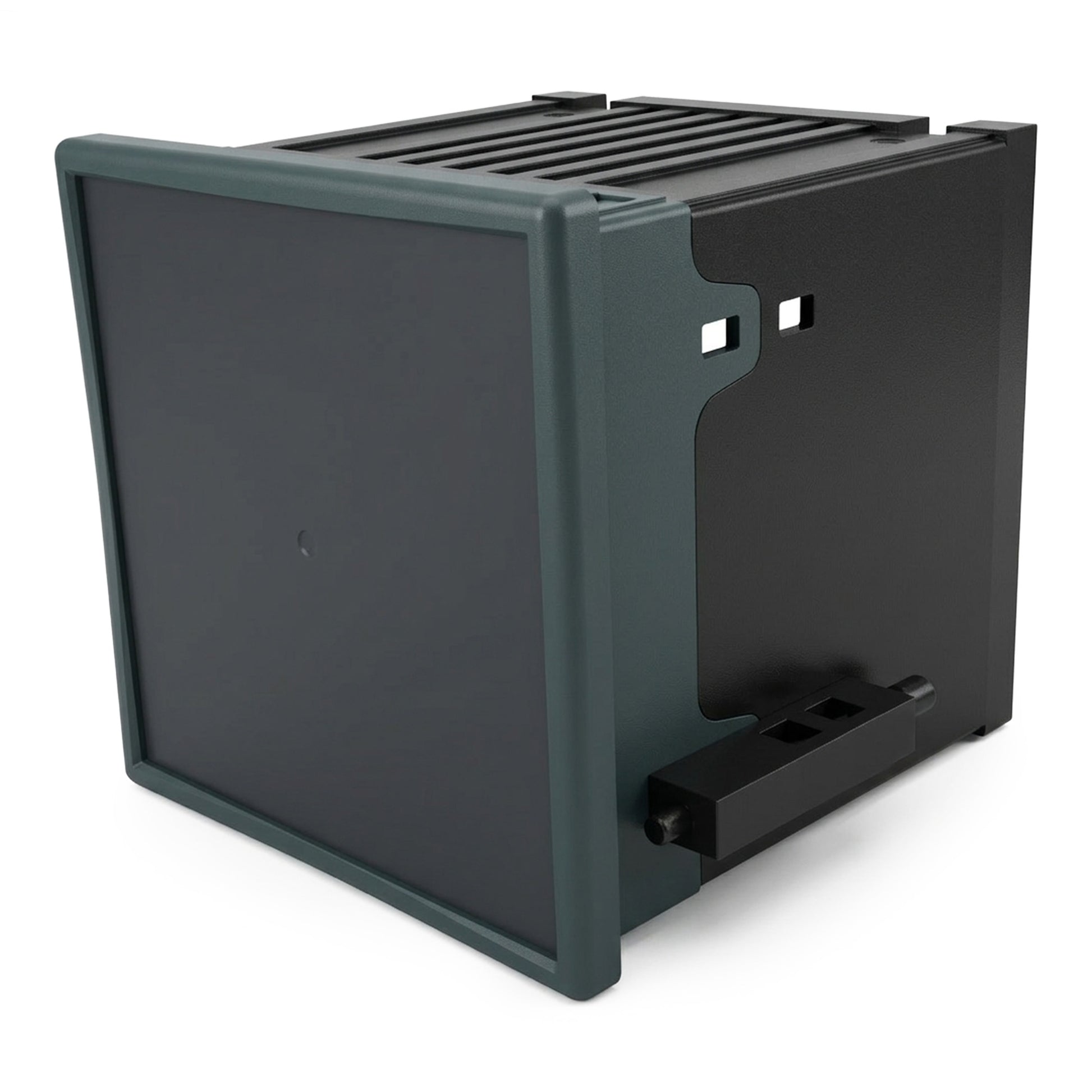

96.96 M
96x96mm enclosure
144.144
144x144mm enclosure
144.144 MS2
144x144mm enclosure
48.48 E
48x48mm enclosure
48.96 E
48x48mm enclosure
B:
Indicates the product with the minimum (base) number of internal guides
M:
Indicates the product with the maximum number of internal guides
E:
Indicates the product with the PCB removable the front side
S2:
Indicates the possibility to assemble the PCBs on both sides of the enclosure
