Modulbox Compact

MODULBOX is a DIN (EN 60715) mounting enclosure (modules from 2 up to 12) for electronic products. MODULBOX XTS COMPACT enclosures offer a wide range of matching options and possibilities which may satisfy any particular or specific Customers’ need giving to the product a unique and personalized shape. They are characterized by the possibility to mount the enclosure itself without screws, by a great variety of modular sizes, machining and silk-printing processes, specific panels, lead sealed protection panels, terminal covers and specific terminals: a variety of options and possibilities which will satisfy all your needs and will give a unique and personalized look to your product.

Model Styles

• H-53A:  raised sides near the terminal block assembly area to allow panel and terminal cover installation - 90mm tall

• H-53B:   one raised side to accommodate larger electronic components and allows panel and terminal cover assembly on one side - 90mm tall

• 53-C:   Allows the maximum space for the electronic components. Can be produced as the closed version upon request for a relatively low quantity.

Features

• Color: Grey
• Blend PC/ABS NS PPO extinguishing

• UL94 Class:  V0
• Operating Temperature:  -40°C + 90°C (Depending on the power dissapated)

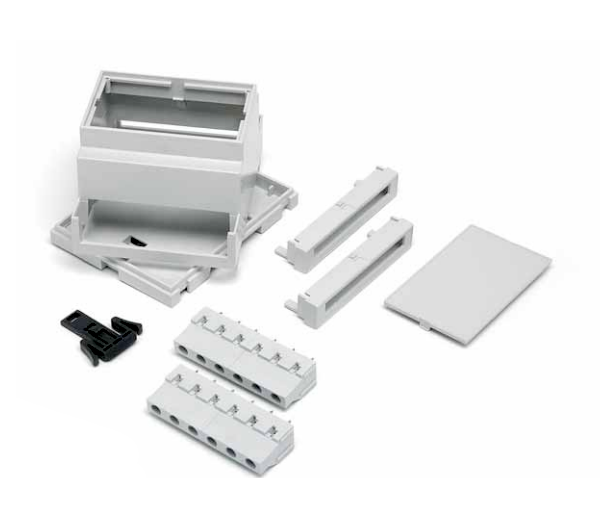

Accessories & Options

• Front panels
• Breakable side covers (Vents)
• Solid side covers

Model Sizes

• 2M       Modular Enclosure

• 3M       Modular Enclosure

• 4M       Modular Enclosure

• 5M       Modular Enclosure

• 6M       Modular Enclosure

• 8M       Modular Enclosure

• 9M       Modular Enclosure
• 12M     Modular Enclosure
